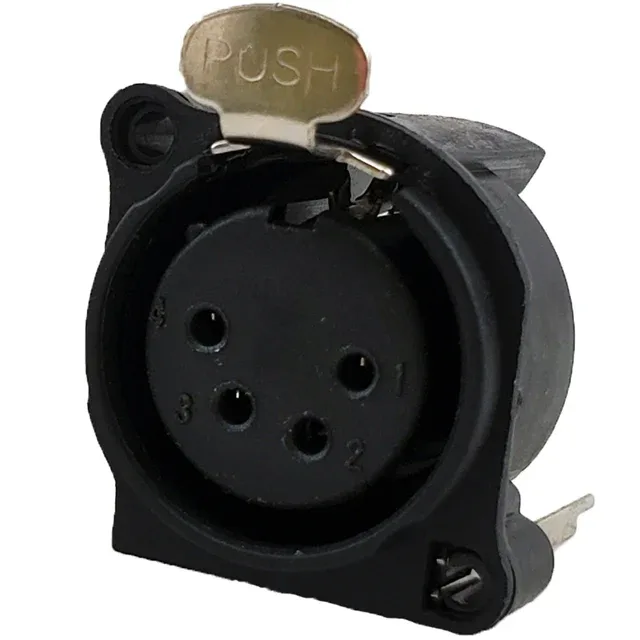

IO Audio Technologies IO-XLR4-F-EV
MPNIO-XLR4-F-EV
Active
E SERIES, 4 PIN XLR, FEMALE, VER
$4.47Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesE
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | E |
| Mounting | Panel Mount, Through Hole |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Latch Lock |
| Voltage rating | 50VAC |
| Current rating | 3A |
| Mounting feature | Flange |
| Operating temperature | -40°C ~ 70°C |
| Color | Black |
| Shell material | Polyamide (PA), Nylon |
| Insert material | Polyamide (PA), Nylon |
| Contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Plastic |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Guide, Ground |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder |
| Applications | Audio, Aviation, Communication Systems |
| Positions | 4 |
| Shell size - insert | XLR |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 1.97µin (0.050µm) |
