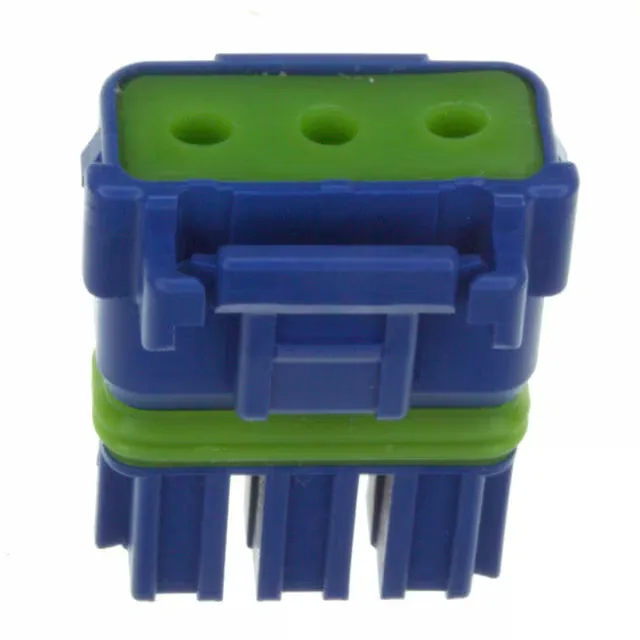

03R-WPJV-3-EMM(N) — JST product photo

JST WPJ 03R-WPJV-3-EMM(N) Receptacle, 3 Pos, 5.00mm

MPN03R-WPJV-3-EMM(N)
Obsolete

JST WPJ series, 3-position receptacle, 5.00mm pitch, single row, blue, crimp termination, free-hanging, latch lock, JIS C 0920 Grade 7, contacts not included.

$0.3192Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

03R-WPJV-3-EMM(N) Technical Specifications
ParameterValue
SeriesWPJ
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
ColorBlue
NoteContacts Not Included
Pitch0.197\" (5.00mm)
PackageBulk
FeaturesJIS C 0920 Grade Level 7
Rows1
Contact terminationCrimp
Positions3

Product details

The JST 03R-WPJV-3-EMM(N) is a 3-position receptacle from the WPJ series, a wire-to-board interconnect family built for environments where moisture ingress is a real concern. The housing carries a JIS C 0920 Grade Level 7 rating — that's the Japanese equivalent of IP67-level protection when mated with the matching plug, meaning it keeps out dust and handles temporary submersion.

This is a bare housing — contacts are not included. Free-hanging (in-line) mounting means it sits on the wire harness, not on the board. The blue colour is a visual key for the WPJ family on the line.

Frequently asked questions

Where can I buy 03R-WPJV-3-EMM(N) available via RFQ confirmation?

The 03R-WPJV-3-EMM(N) is obsolete and no longer in factory production. Submit an RFQ for current pricing and stock status.

What contacts are compatible with 03R-WPJV-3-EMM(N)?

The 03R-WPJV-3-EMM(N) is a receptacle housing that accepts female socket crimp terminals from the JST WPJ series. Contacts are not included with this housing — order the matching crimp terminals separately.
