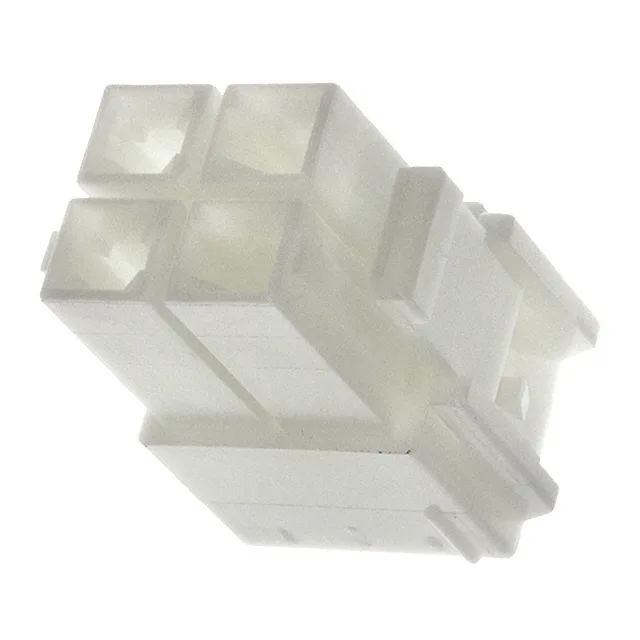

VLP-04V — JST product photo
JST

JST VLP-04V VL Series Plug, 4 Position, 6.20mm Pitch

MPNVLP-04V
Active

JST VL series plug, 4 positions, 2 rows, 0.244" (6.20mm) pitch, crimp termination, female socket contacts, latch lock, free hanging, white PA66 housing, -25°C to 90°C.

$0.5000Ref. price · indicative, final on quote
VLP-04V datasheet
StockIn Stock (28)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

VLP-04V Technical Specifications
ParameterValue
SeriesVL
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Lock
Operating temperature-25°C ~ 90°C
ColorWhite
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.244\" (6.20mm)
PackageBulk
Rows2
Contact terminationCrimp
Positions4

Product details

6.20mm Pitch, 4-Position Plug for Harness Applications

It uses a 0.244" (6.20mm) pitch, which gives generous creepage and clearance for power and signal lines in harness assemblies. The housing is molded from white polyamide (PA66/Nylon 6/6), rated for -25°C to 90°C operating environments — typical for indoor industrial control cabinets or automotive interior compartments where moderate temperature excursions occur.

The VLP-04V mates with a VL series receptacle housing (4-position, dual-row). For the crimp terminals, use JST's VL-series female socket contacts — these are ordered separately. The 2-row layout means the 4 positions are arranged in two rows of two, which aligns with the receptacle's dual-row footprint.

Frequently asked questions

Does the JST VLP-04V come with contacts?

No, the VLP-04V is a housing only — contacts are not included. You must order the matching VL-series female socket crimp terminals separately.

What is the mating connector for VLP-04V?

The VLP-04V mates with a VL-series receptacle housing, such as the VLR-04V (4-position, dual-row). The latch lock on the plug engages with the receptacle's locking feature.
