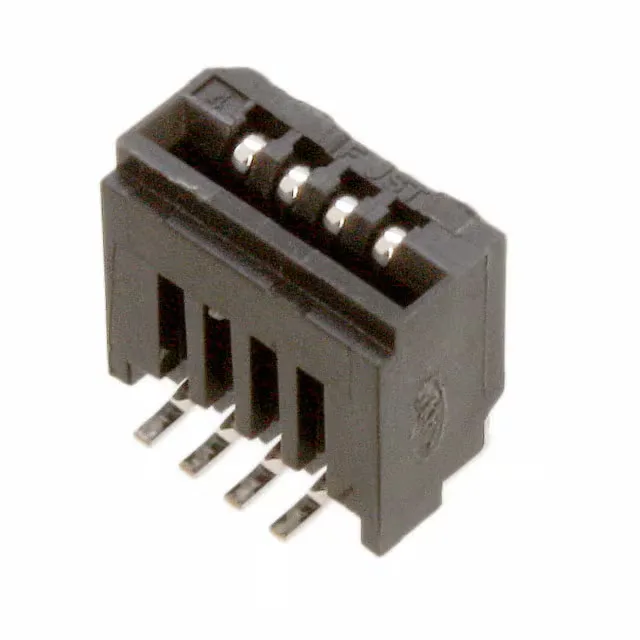

04FMN-BMT-A-TF(LF)(SN) — JST product photo
JST

JST 04FMN-BMT-A-TF(LF)(SN) FFC Connector – 1.00 mm Pitch

MPN04FMN-BMT-A-TF(LF)(SN)
Active

JST Sales America Inc., FMN series, 4-position FFC connector, 1.00 mm pitch, vertical SMD, tin-plated contacts, 0.5 A, 50 V, Low Insertion Force, UL94 V-0.

$0.4500Ref. price · indicative, final on quote
04FMN-BMT-A-TF(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

04FMN-BMT-A-TF(LF)(SN) Technical Specifications
ParameterValue
SeriesFMN
Mounting typeSurface Mount
Cable end typeStraight
Flat flex typeFFC
Connector (Contact type)Contacts, Vertical - 1 Sided
Voltage rating50V
Current rating0.5A
Operating temperature-25°C~85°C
Housing colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA6T), Nylon 6T
Height above board0.201\" (5.10mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesLow Insertion Force (LIF)
TerminationSolder
Contact finishTin
FFC, FCB thickness0.30mm
Positions4

Product details

What This 4-Pin FFC Connector Does for Your Board

The JST 04FMN-BMT-A-TF(LF)(SN) is a vertical SMD FFC connector from the FMN series, offering 4 positions at 1.00 mm pitch. It accepts 0.30 mm thick FFC cable and terminates via solder to the PCB. The Low Insertion Force (LIF) design reduces pad wear during assembly and rework — a practical benefit when the flex circuit sees multiple insertions over the product life.

The housing is black polyamide (PA6T) with UL94 V-0 flammability rating, suitable for equipment requiring flame-retardant materials inside the enclosure. Phosphor bronze contacts with tin plating provide reliable electrical connection for low-cycle duty.

No pin-compatible direct replacement is listed by JST — this is the active order code for the 4-position, 1.00 mm pitch, vertical SMD FMN connector.

Frequently asked questions

Is the 04FMN-BMT-A-TF(LF)(SN) RoHS compliant?

Yes, the (LF)(SN) suffix indicates RoHS compliance and tin-plated contacts.

Does the 04FMN-BMT-A-TF(LF)(SN) have a locking feature?

No locking latch is specified. The Low Insertion Force (LIF) design relies on friction retention — adequate for applications without vibration or cable strain. For environments with movement, consider a connector with a positive lock.

What is the closest pin-compatible alternative to 04FMN-BMT-A-TF(LF)(SN) in this FFC / FPC Cable Assemblies family?

No direct pin-compatible replacement is listed by JST for this specific 4-position, 1.00 mm pitch, vertical SMD, tin-plated configuration. The 04FMN-BMT-A-TF(LF)(SN) is the active order code — confirm your BOM position count and mating half before substituting.
