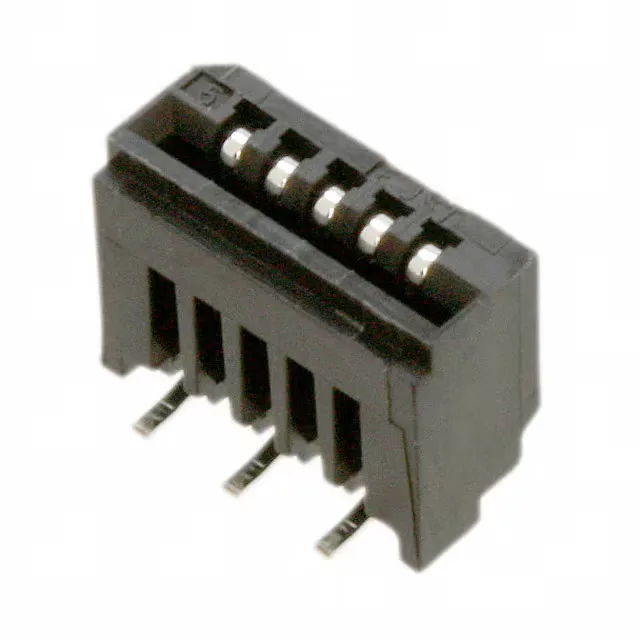

05FMN-BMTTN-A-TF(LF)(SN) JST FMN 5-Pos 1.00mm FFC Connector

MPN05FMN-BMTTN-A-TF(LF)(SN)
Active

JST Sales America Inc. FMN series, 5-position vertical FFC connector, 1.00 mm pitch, 0.5 A, tin-plated contacts, Low Insertion Force (LIF), SMD solder termination, UL94 V-0 housing, RoHS compliant

$0.5100Ref. price · indicative, final on quote
05FMN-BMTTN-A-TF(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

05FMN-BMTTN-A-TF(LF)(SN) Technical Specifications
ParameterValue
SeriesFMN
Mounting typeSurface Mount
Cable end typeStraight
Flat flex typeFFC
Connector (Contact type)Contacts, Vertical - 1 Sided
Voltage rating50V
Current rating0.5A
Operating temperature-25°C~85°C
Housing colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA6T), Nylon 6T
Height above board0.201\" (5.10mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesLow Insertion Force (LIF)
TerminationSolder
Contact finishTin
FFC, FCB thickness0.30mm
Positions5

Product details

5-Position FFC Connector in Active Production

The 05FMN-BMTTN-A-TF(LF)(SN): The tin-plated phosphor bronze contacts and Low Insertion Force (LIF) design make it a straightforward signal interconnect for low-power FFC cable assemblies. The connector accepts 0.30 mm thick FFC cable with a straight (vertical) cable entry.

Pitch, Positions, and Cable Fit Check

The 5-position count is the lowest in the FMN vertical SMD family — a 6-position sibling (06FMN-BMTTN-A-TF(LF)(SN)) shares the same pitch, height, and current rating if you need one more signal line. A 0.5 mm FFC will not seat correctly; the contact gap is designed for the 0.30 mm nominal.

The base product number is 05FMN-BM; the full order code includes the tape-and-reel packaging suffix.
