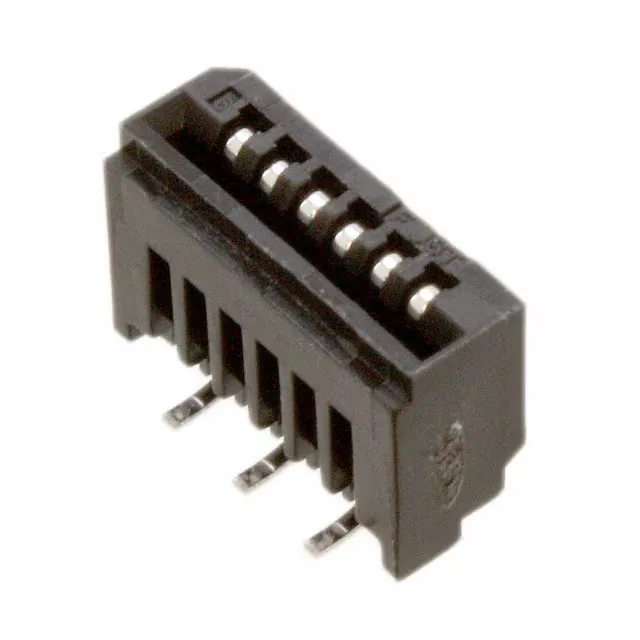

1.00 mm Pitch, 6 Positions – Footprint Fit for FFC
This connector mates a 0.30 mm thick FFC with contacts on one side only, vertical entry, so the cable routes straight down onto the board. The tin-plated phosphor bronze contacts keep contact resistance stable for the rated life.
Low Insertion Force – Less Wear on Repeated Mates
The Low Insertion Force (LIF) design reduces the force needed to insert the FFC, which cuts wear on the cable pads over repeated mating cycles.
SMD Termination, Vertical Orientation – Board Assembly Fit
Surface-mount solder termination suits automated pick-and-place assembly. The vertical orientation means the connector stands 5.10 mm above the board — check the z-height clearance in the enclosure before committing the layout.
Active Production – No Obsolescence Risk
The FMN series is an established line, so the BOM line is stable for ongoing production.
