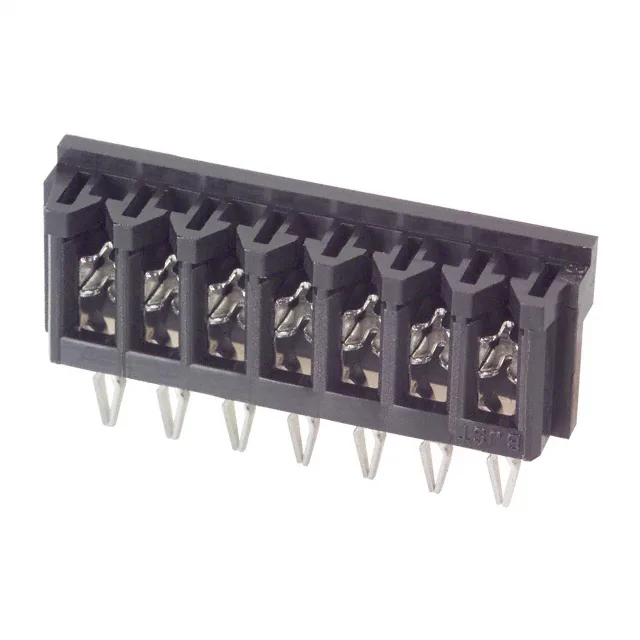

JST 07DB-4K(LF) 7-Position IDC Connector, 0.098" Pitch

MPN07DB-4K(LF)
Active

JST DB series, 7-position IDC connector, 0.098" (2.50mm) pitch, single row, closed end, through hole press-fit, 24-28 AWG stranded, tin-lead contact finish, black housing.

$0.3617Ref. price · indicative, final on quote
07DB-4K(LF) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

07DB-4K(LF) Technical Specifications
ParameterValue
SeriesDB
Mounting typeThrough Hole, Press-Fit
Connector typeIndividual Wires
Wire gauge24-28 AWG, Stranded
Cable pitch0.098\" (2.50mm)
Cable terminationIDC
ColorBlack
PackageBulk
FeaturesClosed End
Contact finishTin-Lead
Rows1
Board-Side pitch0.098\" (2.50mm)
Positions7

Product details

7-Position IDC Connector for Discrete Wire Harnesses

The JST 07DB-4K(LF) is a 7-position IDC connector from the DB series, designed for mass-terminating discrete stranded wires without stripping. The closed-end housing blocks wire feed-through at the far end of the connector, making it the natural choice for terminating the last position in a daisy-chain or for sealing the end of a harness run. It accepts 24-28 AWG stranded wire and terminates via IDC — the insulation is displaced by the contact tines as the cover is pressed down, giving a gas-tight connection without a separate crimp tool for each wire. The 0.098" (2.50mm) pitch on both the cable side and the board side matches the common 2.50mm discrete-wire IDC footprint. The black housing is molded in a single row with all 7 positions loaded.

Press-Fit Mounting for Solderless Assembly

The 07DB-4K(LF) mounts through a plated through-hole using a press-fit interface — no solder is required. The compliant press-fit tail deforms elastically as it enters the hole, creating a gas-tight mechanical and electrical connection.

Frequently asked questions

Is JST 07DB-4K(LF) a closed end connector?

Yes, the 07DB-4K(LF) is a closed-end connector, meaning the housing blocks wire passage at the far end — it is designed for terminating the last position in a daisy-chain or for sealing the end of a harness run.

What is the wire gauge range for 07DB-4K(LF)?

The 07DB-4K(LF) accepts 24-28 AWG stranded wire. The IDC termination is sized for this range — using wire outside it risks poor insulation displacement or contact retention.
