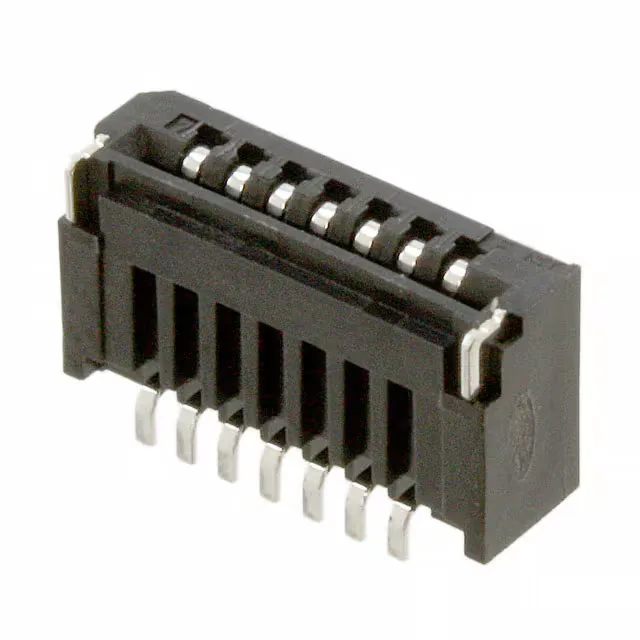

07FMN-SMT-A-TF(LF)(SN) JST FMN 7-Pin 1mm FFC Connector

MPN07FMN-SMT-A-TF(LF)(SN)
Active

JST Sales America Inc., FMN series, 07FMN-SMT-A-TF(LF)(SN) — FFC connector, 7 positions, 0.039" (1.00mm) pitch, 0.5A, tin-plated phosphor bronze contacts, top contact style, surface mount right-angle, LIF actuation, black PA6T housing, UL94 V-0.

$0.5400Ref. price · indicative, final on quote
07FMN-SMT-A-TF(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

07FMN-SMT-A-TF(LF)(SN) Technical Specifications
ParameterValue
SeriesFMN
Mounting typeSurface Mount, Right Angle
Cable end typeStraight
Flat flex typeFFC
Connector (Contact type)Contacts, Top
Voltage rating50V
Current rating0.5A
Operating temperature-25°C~85°C
Housing colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA6T), Nylon 6T
Height above board0.118\" (3.00mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesLow Insertion Force (LIF)
TerminationSolder
Contact finishTin
FFC, FCB thickness0.30mm
Positions7

Product details

The Low Insertion Force (LIF) design reduces the force needed to insert the FFC, which helps protect the cable pads from wear during repeated connections. The top contact style means the FFC's conductive traces face upward when inserted, a detail to confirm against your cable's pad orientation.

FFC Compatibility and Termination Details

The straight cable end type means the FFC exits the connector in line with the board edge, which is the typical arrangement for right-angle connectors. Termination is by solder reflow — the SMT pads are designed for standard lead-free profiles.
