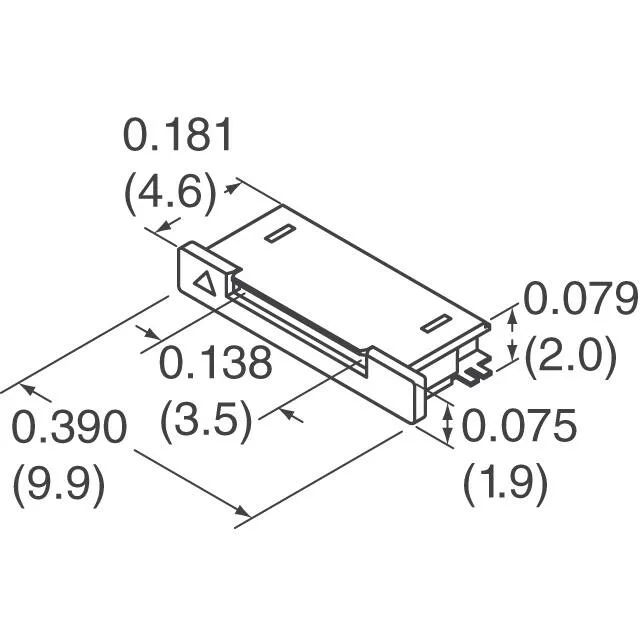

08FLZ-SM2-TB(LF)(SN) — JST product photo
JST

08FLZ-SM2-TB(LF)(SN) JST FLZ 8-Pos 0.50mm FPC ZIF Connector

MPN08FLZ-SM2-TB(LF)(SN)
Active

JST Sales America Inc. FLZ series, 8-position 0.50mm pitch FPC connector, top contact, ZIF slide lock, tin-plated phosphor bronze contacts, 0.5 A, 50 V, surface mount right-angle, UL94 V-0.

$0.9400Ref. price · indicative, final on quote
08FLZ-SM2-TB(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

08FLZ-SM2-TB(LF)(SN) Technical Specifications
ParameterValue
SeriesFLZ
Mounting typeSurface Mount, Right Angle
Cable end typeTapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Top
Voltage rating50V
Current rating0.5A
Operating temperature-25°C~85°C
Housing colorGray
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA6T), Nylon 6T
Actuator materialPolyamide (PA6T), Nylon 6T
Height above board0.079\" (2.00mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions8

Product details

8-Position 0.50mm Pitch FPC Connector for Signal-Level Interconnects

The JST FLZ series 08FLZ-SM2-TB(LF)(SN) is an 8-position, 0.50mm pitch FPC connector with a top-contact ZIF design and slide lock.

Position Count and Pitch for BOM Fit

At 8 positions, this connector fits low-channel signal or power BOMs where a 9-position alternative (09FLZ-SM2-TB) would over-spec the board footprint. The 0.50mm pitch sets the trace fan-out density—tight enough for compact layouts but wide enough for standard PCB fab tolerances.

ZIF Actuation and Slide Lock for Reliable Mating

The zero insertion force mechanism eliminates FPC pad wear during insertion—the actuator opens the contact beams, the cable slides in, then the slide lock closes to clamp the contacts.

Frequently asked questions

What is the pitch of 08FLZ-SM2-TB(LF)(SN)?

The pitch is 0.020" (0.50mm), standard for the FLZ series. This sets the board footprint for the FPC fan-out and the mating cable pitch.

Is 08FLZ-SM2-TB(LF)(SN) RoHS compliant?

Yes, it is RoHS compliant per the JST listing.
