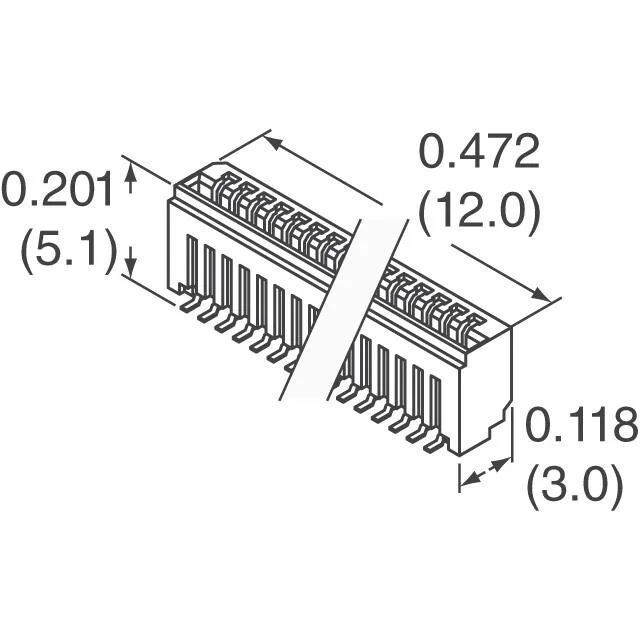

10FMN-BMT-A-TF(LF)(SN) — JST product photo
JST

10FMN-BMT-A-TF(LF)(SN) JST FMN 1.00mm Pitch FFC Connector

MPN10FMN-BMT-A-TF(LF)(SN)
Active

JST Sales America Inc. FMN series, 10FMN-BMT-A-TF(LF)(SN) — 10-position, 1.00 mm pitch, vertical SMD FFC connector, Low Insertion Force (LIF), tin-plated phosphor bronze contacts, rated 0.5 A per contact at 50 V, UL94 V-0 housing.

$0.6800Ref. price · indicative, final on quote
10FMN-BMT-A-TF(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10FMN-BMT-A-TF(LF)(SN) Technical Specifications
ParameterValue
SeriesFMN
Mounting typeSurface Mount
Cable end typeStraight
Flat flex typeFFC
Connector (Contact type)Contacts, Vertical - 1 Sided
Voltage rating50V
Current rating0.5A
Operating temperature-25°C~85°C
Housing colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA6T), Nylon 6T
Height above board0.201\" (5.10mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesLow Insertion Force (LIF)
TerminationSolder
Contact finishTin
FFC, FCB thickness0.30mm
Positions10

Product details

Board Layout Fit: 1.00 mm Pitch, Vertical SMD

The 10FMN-BMT-A-TF(LF)(SN): The vertical orientation (contacts, vertical - 1 sided) means the FFC inserts straight down, and the 5.10 mm height above board clears most low-profile enclosures. The Low Insertion Force (LIF) design reduces the force needed to seat the FFC, which helps avoid pad damage on thin flex circuits during assembly or field rework.

FFC Thickness and Housing Material

Peer Comparison: Vertical vs Right-Angle

The closest functional sibling is 10FMN-BMTTN-A-TF(LF)(SN) — same 10 positions, 1.00 mm pitch, vertical orientation, and 5.10 mm height. The difference is the tape-and-reel packaging variant (Digi-Reel® option on the sibling). For a right-angle board edge mount, the 10FMN-SMT-A-TF(LF)(SN) drops the height to 3.00 mm and changes the contact orientation to top-entry, which alters the FFC routing path.

Frequently asked questions

Is 10FMN-BMT-A-TF(LF)(SN) RoHS compliant?

Yes, it is RoHS compliant per the manufacturer listing.

What is the recommended footprint for 10FMN-BMT-A-TF(LF)(SN)?

The footprint follows the 1.00 mm pitch with 10 pads in a single row, vertical orientation. The exact pad layout and keep-out zone are in the product drawing — the 5.10 mm height above board should be accounted for in the enclosure z-height budget.

Does 10FMN-BMT-A-TF(LF)(SN) require a mating connector?

No — this is a one-piece FFC connector. The FFC cable inserts directly into the vertical slot; no separate mating housing is needed.
