FFC vertical SMT, 10 circuits, 1.00 mm pitch

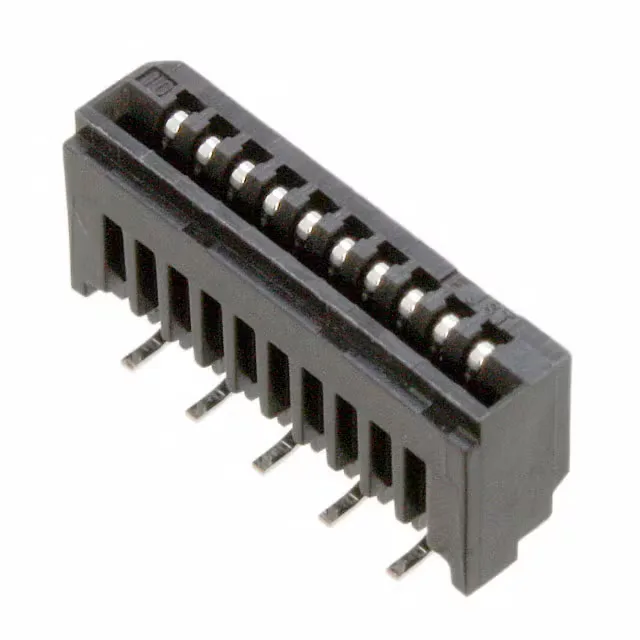

The 10FMN-BMTTN-A-TF(LF)(SN) is the 10-circuit member of JST's FMN series of FFC connectors, accepting 0.30 mm thick flat flex cable in a vertical SMT orientation.
The 1.00 mm pitch limits routing density on the board — each signal pair occupies 2.00 mm of edge space. The 0.30 mm FFC thickness is standard for this pitch class; the LIF actuator accepts the cable without a secondary lock. The 0.5 A per-contact rating reflects the narrow contact beam and tin plating — this connector suits signal-level duty, not power delivery. The 50 V voltage rating matches typical FFC signal levels in consumer and industrial control boards.
