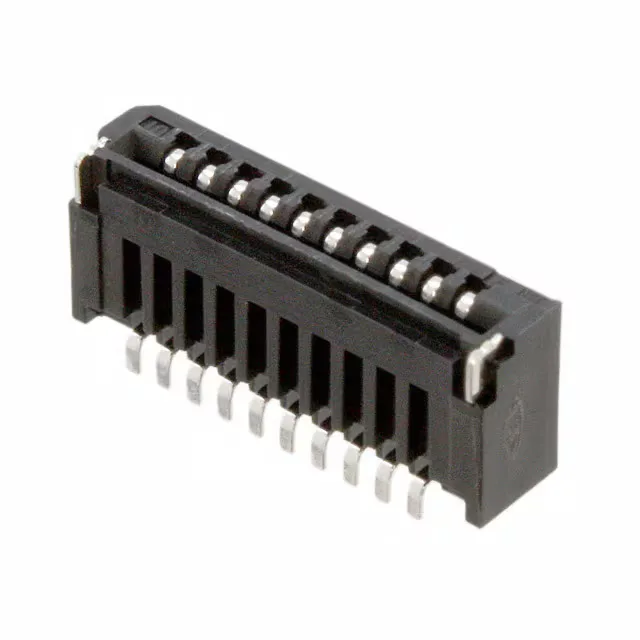

JST FMN series FFC connector, 10 positions, 1.00 mm pitch, 0.5 A per contact, tin-plated phosphor bronze contacts, surface-mount right-angle, LIF actuation, black PA6T housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | FMN |
| Mounting type | Surface Mount, Right Angle |
| Cable end type | Straight |
| Flat flex type | FFC |
| Connector (Contact type) | Contacts, Top |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -25°C~85°C |
| Housing color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA6T), Nylon 6T |
| Height above board | 0.118\" (3.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Low Insertion Force (LIF) |
| Termination | Solder |
| Contact finish | Tin |
| FFC, FCB thickness | 0.30mm |
| Positions | 10 |
The 10FMN-SMT-A-TF(LF)(SN): With a 3.00 mm height above board, this connector fits low-profile assemblies where the mating FPC must stay close to the PCB. The top-contact design means the FPC's conductive pads face upward when inserted, which is the typical arrangement for right-angle SMT connectors.
The pitch is 0.039" (1.00 mm), which is the center-to-center spacing between adjacent contacts.
Yes, it is RoHS compliant, as indicated by the (LF)(SN) suffix in the part number.
