Press-Fit IDC Header for Discrete Wire Harnesses

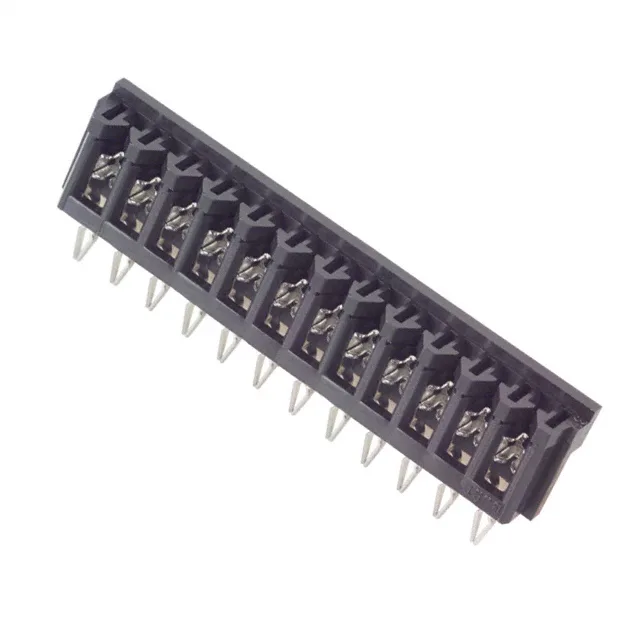

The JST 12DB-4K(LF) is a 12-position, single-row IDC connector from the DB series, designed for terminating individual stranded wires directly into the connector body without pre-stripping. The closed-end design provides a positive stop for the wire during insertion, preventing over-insertion that could damage the contact or short to adjacent circuits. The housing is black, and the contacts carry a tin-lead finish — a plating choice that suits moderate mating-cycle applications where cost matters more than cycle life.
Mounting and Termination — Press-Fit vs Solder
The press-fit termination method is the key differentiator here. Instead of wave-soldering the pins, the connector is pressed into the board using a pneumatic or hand arbor press. The compliant pin geometry deforms to fill the plated hole, creating a gas-tight connection that meets the same reliability standards as soldered joints. This makes the 12DB-4K(LF) a good fit for backplanes or multi-board assemblies where rework or field replacement of individual connectors is expected — a press-fit connector can be extracted and replaced without desoldering. On the cable side, the IDC termination requires a simple hand or bench press tool to push the unstripped wires into the insulation-displacement slots. The closed end acts as a depth stop, so the assembler gets consistent insertion depth across all 12 positions without measuring. The 24-28 AWG stranded range covers common ribbon cable and discrete wire bundles used in internal point-to-point wiring.
