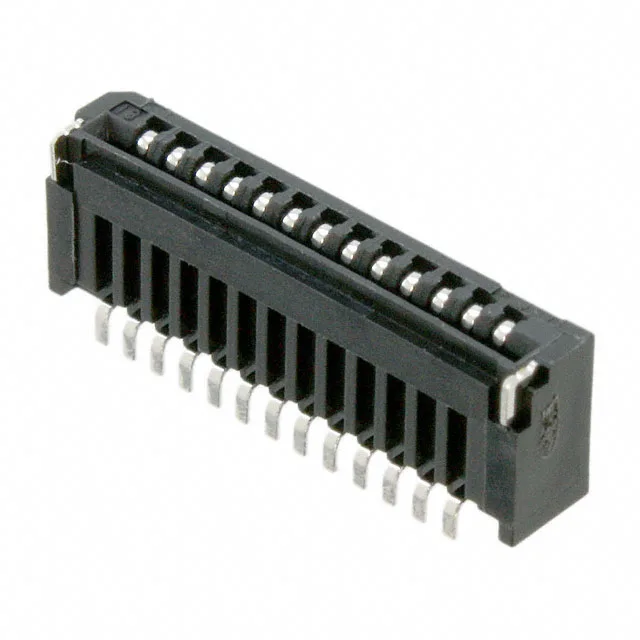

JST FMN 13FMN-SMT-A-TF(LF)(SN) FFC Connector, 13 Pos, 1.00mm

MPN13FMN-SMT-A-TF(LF)(SN)
Active

JST Sales America Inc. FMN series FFC connector, order code 13FMN-SMT-A-TF(LF)(SN), 13 positions, 1.00 mm pitch, 0.5 A, 50 V, tin-plated contacts, surface-mount right-angle, solder termination.

$0.3926Ref. price · indicative, final on quote
13FMN-SMT-A-TF(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

13FMN-SMT-A-TF(LF)(SN) Technical Specifications
ParameterValue
SeriesFMN
Mounting typeSurface Mount, Right Angle
Cable end typeStraight
Flat flex typeFFC
Connector (Contact type)Contacts, Top
Voltage rating50V
Current rating0.5A
Operating temperature-25°C ~ 85°C
Housing colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA6T), Nylon 6T
Height above board0.118\" (3.00mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesLow Insertion Force (LIF)
TerminationSolder
Contact finishTin
FFC, FCB thickness0.30mm
Positions13

Product details

13-position 1.00 mm pitch FFC connector

The 13FMN-SMT-A-TF(LF)(SN) is the 13-circuit member of JST's FMN series of FFC connectors. It carries tin-plated contacts rated 0.5 A at 50 V and mounts surface-mount right-angle with solder termination.

LIF actuation and FFC thickness

The connector uses a low insertion force (LIF) mechanism that accepts 0.30 mm thick FFC — the contact beam wipes the pad on insertion without requiring a secondary lock. Contact side is top, which means the exposed pads on the FFC face upward when the cable end is straight.

Frequently asked questions

What FFC thickness does the 13FMN-SMT-A-TF(LF)(SN) accept?

The connector accepts 0.30 mm thick FFC. The LIF mechanism wipes the pad on insertion without a secondary lock.

What is the pitch and position count of the 13FMN-SMT-A-TF(LF)(SN)?

Pitch is 0.039" (1.00 mm) with 13 positions. The contact side is top, accepting straight cable end.
