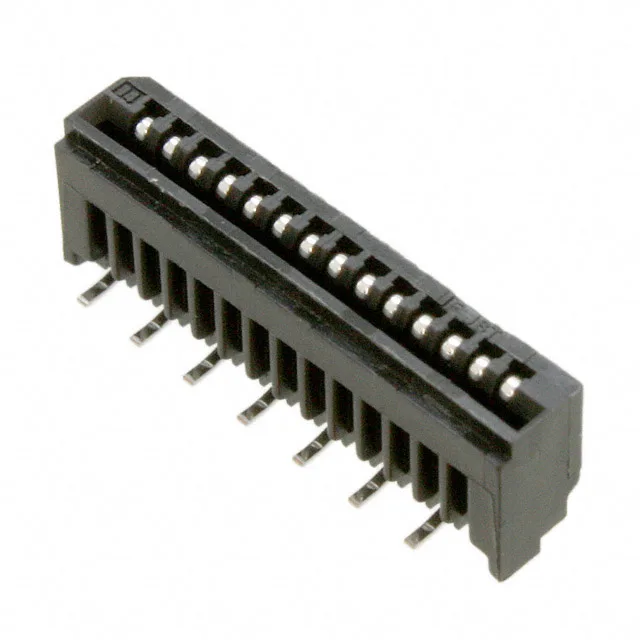

14FMN-BMTTR-A-TB(LF)(SN) — JST product photo
JST

JST FMN 14FMN-BMTTR-A-TB(LF)(SN) FFC Connector, 14 Pos

MPN14FMN-BMTTR-A-TB(LF)(SN)
Active

JST Sales America Inc. FMN series FFC connector, order code 14FMN-BMTTR-A-TB(LF)(SN), 14 positions, 1.00 mm pitch, 0.5 A, 50 V, tin-plated contacts, Low Insertion Force (LIF), surface-mount vertical, solder termination.

$0.4374Ref. price · indicative, final on quote
14FMN-BMTTR-A-TB(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

14FMN-BMTTR-A-TB(LF)(SN) Technical Specifications
ParameterValue
SeriesFMN
Mounting typeSurface Mount
Cable end typeStraight
Flat flex typeFFC
Connector (Contact type)Contacts, Vertical - 1 Sided
Voltage rating50V
Current rating0.5A
Operating temperature-25°C~85°C
Housing colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA6T), Nylon 6T
Height above board0.201\" (5.10mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesLow Insertion Force (LIF)
TerminationSolder
Contact finishTin
FFC, FCB thickness0.30mm
Positions14

Product details

FFC contact system and ratings

The 14FMN-BMTTR-A-TB(LF)(SN) is the 14-circuit member of JST's FMN FFC connector series, using a Low Insertion Force (LIF) actuation that accepts 0.30 mm-thick flat flex cable. Tin-plated phosphor bronze contacts are rated 0.5 A per circuit at 50 V, with the operating temperature range from -25°C to 85°C.

Pitch and board footprint

At 1.00 mm pitch, the 14-position FMN connector occupies a compact board footprint; the vertical SMT orientation places the cable entry parallel to the PCB edge.
