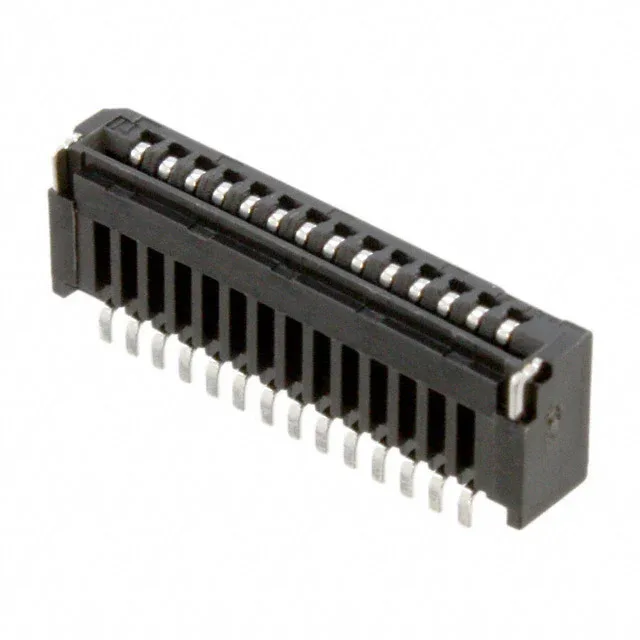

14FMN-SMT-A-TF(LF)(SN) — JST FMN 14-Pos FFC Connector

MPN14FMN-SMT-A-TF(LF)(SN)
Active

JST Sales America Inc., FMN series, 14-position FFC connector, 1.00 mm pitch, surface-mount right-angle, tin-plated phosphor bronze contacts, 0.5 A, 50 V, RoHS compliant.

$0.7300Ref. price · indicative, final on quote
14FMN-SMT-A-TF(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

14FMN-SMT-A-TF(LF)(SN) Technical Specifications
ParameterValue
SeriesFMN
Mounting typeSurface Mount, Right Angle
Cable end typeStraight
Flat flex typeFFC
Connector (Contact type)Contacts, Top
Voltage rating50V
Current rating0.5A
Operating temperature-25°C~85°C
Housing colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA6T), Nylon 6T
Height above board0.118\" (3.00mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesLow Insertion Force (LIF)
TerminationSolder
Contact finishTin
FFC, FCB thickness0.30mm
Positions14

Product details

Board Layout Fit: 1.00 mm Pitch, 14 Positions, Right-Angle SMT

The 14FMN-SMT-A-TF(LF)(SN): The contacts are top-side type, meaning the FFC cable enters from above the connector body, with the conductor pads facing upward — confirm the cable's conductor orientation before layout.

Signal-Level Current and Voltage Ceiling

The 1.00 mm pitch and tin plating together limit the current per circuit; the connector is suited for low-power digital or analog signals where the trace width on the FFC matches the contact beam width.

FFC Cable Compatibility and Termination

Accepts 0.30 mm thick FFC with straight cable end type — the Low Insertion Force (LIF) mechanism reduces wear on the FFC pads during repeated mating cycles, which matters in field-service or test-fixture applications where the cable is disconnected and reconnected regularly. Solder termination: the connector is reflow-soldered to the PCB.

Position Count Alternatives in the FMN Series

The FMN series offers the same 1.00 mm pitch, 3.00 mm height, and 0.5 A rating in 12-position and 16-position variants.

Frequently asked questions

Is 14FMN-SMT-A-TF(LF)(SN) lead-free and RoHS compliant?

Yes, the (LF)(SN) suffix indicates lead-free and RoHS-compliant status.

What is the mounting type and pitch of 14FMN-SMT-A-TF(LF)(SN)?

Surface mount, right-angle orientation, with a 1.00 mm pitch. The connector sits 3.00 mm above the board.
