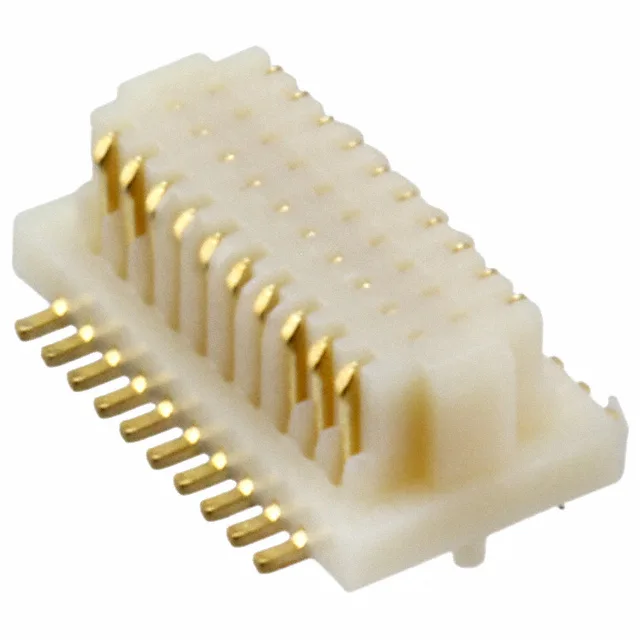

20R-JMCS-G-B-TF(S) — JST product photo
JST

JST 20R-JMCS-G-B-TF(S) JMC Receptacle, 20 Pos, 0.50mm Pitch

MPN20R-JMCS-G-B-TF(S)
Obsolete

JST JMC series receptacle, center strip contacts, 20 positions, 2 rows, 0.020" (0.50mm) pitch, surface mount, gold contact finish, with board guide, Tape & Reel.

$0.8800Ref. price · indicative, final on quote
20R-JMCS-G-B-TF(S) datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

20R-JMCS-G-B-TF(S) Technical Specifications
ParameterValue
SeriesJMC
Mounting typeSurface Mount
Connector typeReceptacle, Center Strip Contacts
Height above board0.091\" (2.30mm)
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide
Contact finishGold
Rows2
Positions20

Product details

0.50mm Pitch, 20-Position JMC Receptacle — Now Obsolete

The JST 20R-JMCS-G-B-TF(S) is a 20-position receptacle from the JMC series, using a 0.020" (0.50mm) pitch and center strip contacts arranged in two rows.

The board guide helps center the mating plug during assembly, reducing the risk of stubbing the fine contacts.

Frequently asked questions

What is the pitch of 20R-JMCS-G-B-TF(S)?

The pitch is 0.020" (0.50mm), which is a fine-pitch interconnect typical for compact, high-density board-to-board or FFC/FPC applications.

Where can I buy 20R-JMCS-G-B-TF(S)?

This part is obsolete; we source it to order against your RFQ.
