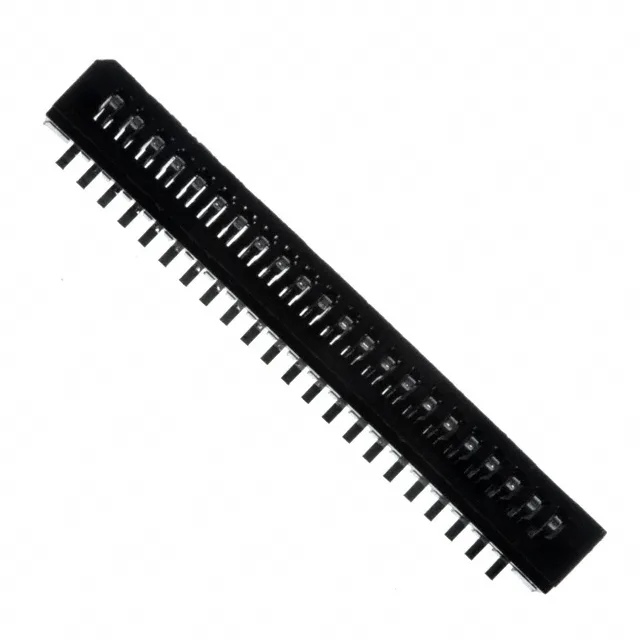

JST FMN 22FMN-BMT-A-TF(LF)(SN) FFC Connector, 22 Pos 1.00mm

MPN22FMN-BMT-A-TF(LF)(SN)
Active

JST FMN series FFC connector, order code 22FMN-BMT-A-TF(LF)(SN), 22 positions, 1.00 mm pitch, 0.5 A, 50 V, tin-plated contacts, Low Insertion Force (LIF), surface-mount, solder termination.

$0.6230Ref. price · indicative, final on quote
22FMN-BMT-A-TF(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

22FMN-BMT-A-TF(LF)(SN) Technical Specifications
ParameterValue
SeriesFMN
Mounting typeSurface Mount
Cable end typeStraight
Flat flex typeFFC
Connector (Contact type)Contacts, Vertical - 1 Sided
Voltage rating50V
Current rating0.5A
Operating temperature-25°C~85°C
Housing colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA6T), Nylon 6T
Height above board0.201\" (5.10mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR)
FeaturesLow Insertion Force (LIF)
TerminationSolder
Contact finishTin
FFC, FCB thickness0.30mm
Positions22

Product details

1.00 mm pitch, 22-circuit FFC connector

The 22FMN-BMT-A-TF(LF)(SN) is the 22-position member of JST's FMN series of vertical FFC connectors, pitched at 1.00 mm. Rated 0.5 A per contact at 50 V, with tin-plated phosphor bronze contacts and a Low Insertion Force (LIF) actuation mechanism that accepts 0.30 mm FFC thickness.

LIF actuation and FFC fit

The Low Insertion Force (LIF) design reduces the force needed to insert the FFC — the contact beam wipes the pad on insertion without a secondary lock. Accepts 0.30 mm FFC; the connector/contact type is vertical, 1-sided.

Active production status

JST lists the 22FMN-BMT-A-TF(LF)(SN) as Active.

Frequently asked questions

What FFC thickness does the 22FMN-BMT-A-TF(LF)(SN) accept?

The connector accepts 0.30 mm FFC. The Low Insertion Force (LIF) mechanism wipes the pad on insertion without a secondary latch.
