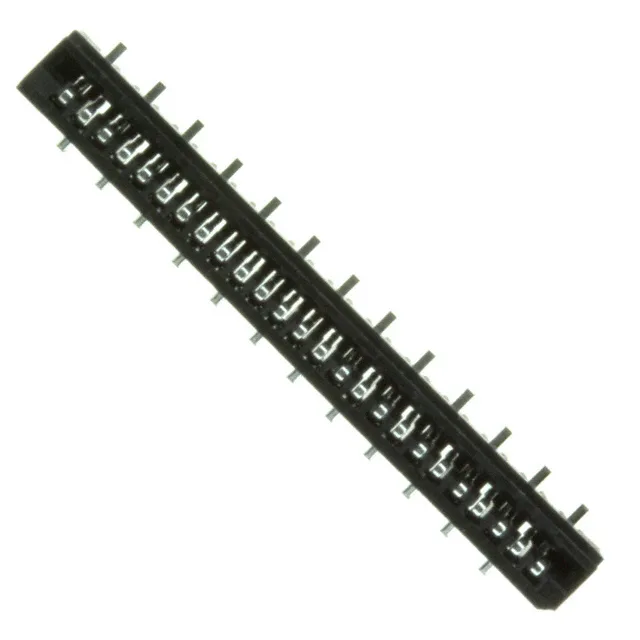

JST FMN 25FMN-BMTTN-A-TF(LF)(SN) FFC Connector, 25 Pos

MPN25FMN-BMTTN-A-TF(LF)(SN)
Active

JST FMN series FFC connector, order code 25FMN-BMTTN-A-TF(LF)(SN), 25 positions, 1.00 mm pitch, 0.5 A, 50 V, tin-plated contacts, Low Insertion Force (LIF), surface-mount, solder termination.

$0.7409Ref. price · indicative, final on quote
25FMN-BMTTN-A-TF(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

25FMN-BMTTN-A-TF(LF)(SN) Technical Specifications
ParameterValue
SeriesFMN
Mounting typeSurface Mount
Cable end typeStraight
Flat flex typeFFC
Connector (Contact type)Contacts, Vertical - 1 Sided
Voltage rating50V
Current rating0.5A
Operating temperature-25°C ~ 85°C
Housing colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA6T), Nylon 6T
Height above board0.201\" (5.10mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR)
FeaturesLow Insertion Force (LIF)
TerminationSolder
Contact finishTin
FFC, FCB thickness0.30mm
Positions25

Product details

1.00 mm pitch, 25-position LIF FFC connector

The 25FMN-BMTTN-A-TF(LF)(SN) is the 25-circuit member of JST's FMN series of FFC connectors, designed for vertical, single-sided FFC insertion with a Low Insertion Force (LIF) actuation. Rated 0.5 A per contact at 50 V, it carries tin-plated phosphor bronze contacts in a UL94 V-0 polyamide housing and mounts surface-mount for solder termination.

Pitch, height, and FFC thickness

The 1.00 mm pitch drives the board footprint and routing density; the mated height above board is 0.201" (5.10 mm), and the connector accepts 0.30 mm thick FFC. The LIF design reduces insertion force compared to a zero-insertion-force (ZIF) latch, suiting applications where the FFC is inserted and removed occasionally without a locking actuator.

Frequently asked questions

What is the closest pin-compatible alternative to 25FMN-BMTTN-A-TF(LF)(SN) in the FMN series?

No pin-compatible alternative is listed in the FMN series with the same 25-position count, 1.00 mm pitch, and LIF actuation. The FMN series includes other position counts; confirm the circuit count and FFC thickness before selecting a different member.
