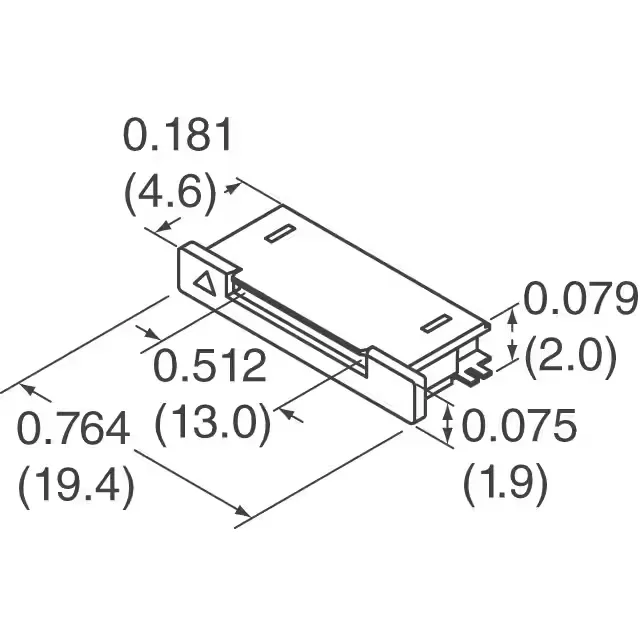

27FLZ-SM2-TB(LF)(SN) — JST product photo
JST

JST 27FLZ-SM2-TB(LF)(SN) FFC Connector, 27 Pos 0.50mm

MPN27FLZ-SM2-TB(LF)(SN)
Active

JST FLZ FFC connector, order code 27FLZ-SM2-TB(LF)(SN), 27 positions, 0.50 mm pitch, 0.5 A, 50 V, tin-plated contacts, surface-mount right-angle, solder termination, ZIF actuation.

$1.5800Ref. price · indicative, final on quote
27FLZ-SM2-TB(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

27FLZ-SM2-TB(LF)(SN) Technical Specifications
ParameterValue
SeriesFLZ
Mounting typeSurface Mount, Right Angle
Cable end typeTapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Top
Voltage rating50V
Current rating0.5A
Operating temperature-25°C~85°C
Housing colorGray
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA6T), Nylon 6T
Actuator materialPolyamide (PA6T), Nylon 6T
Height above board0.079\" (2.00mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Contact finishTin
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions27

Product details

ZIF actuation, 0.50 mm pitch

The 27FLZ-SM2-TB(LF)(SN) is the 27-position member of JST's FLZ FFC/FPC connector series, using a zero-insertion-force (ZIF) slide-lock actuator that accepts a 0.30 mm-thick tapered cable end. Tin-plated phosphor bronze contacts rated 0.5 A at 50 V, with the top-contact interface and SMT right-angle mounting suited for board-edge cable routing.

Position count across the FLZ series

The 27-position 27FLZ-SM2-TB(LF)(SN) sits above the 24-position 24FLZ-SM2-TB in the same FLZ series — both share the 0.50 mm pitch, 2.00 mm board height, ZIF actuation, and tin contact finish, so the decision narrows to matching the circuit count.

Frequently asked questions

Will 27FLZ-SM2-TB(LF)(SN) drop into a panel specified around 27FLZ-SM2-TB without rewiring?

The 27FLZ-SM2-TB(LF)(SN) and 27FLZ-SM2-TB share the same 27-position count, 0.50 mm pitch, 2.00 mm board height, top-contact ZIF interface, and tin finish — they are functionally identical for the same FFC cable and footprint.
