JST Sales America Inc. FMN FFC connector, order code 30FMN-BMT-A-TF(LF)(SN), 30 positions, 1.00 mm pitch, 0.5 A, 50 V, tin-plated contacts, low insertion force (LIF), surface-mount vertical, solder termination.
| Parameter | Value |
|---|---|
| Series | FMN |
| Mounting type | Surface Mount |
| Cable end type | Straight |
| Flat flex type | FFC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -25°C~85°C |
| Housing color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA6T), Nylon 6T |
| Height above board | 0.201\" (5.10mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Low Insertion Force (LIF) |
| Termination | Solder |
| Contact finish | Tin |
| FFC, FCB thickness | 0.30mm |
| Positions | 30 |

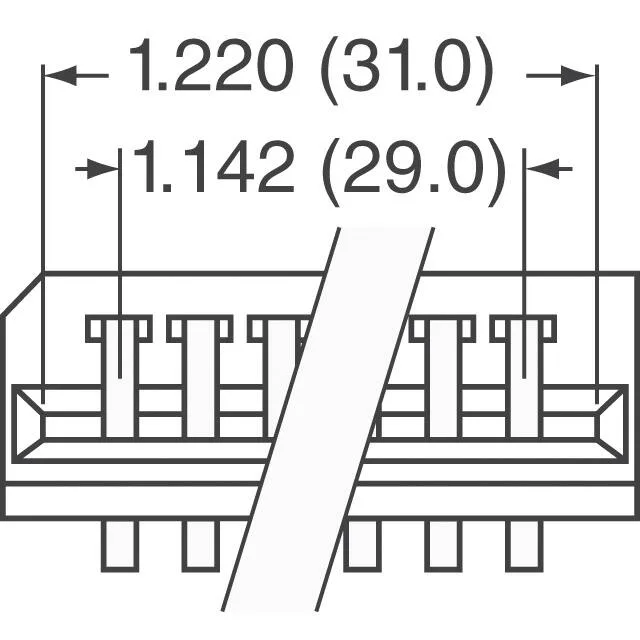

The 30FMN-BMT-A-TF(LF)(SN) is a 30-circuit vertical FFC connector in JST's FMN series, pitched at 1.00 mm.
The LIF mechanism reduces insertion force compared to a zero-insertion-force (ZIF) lock — the FFC slides in without a flip actuator, and the contacts grip the pads once seated. Mounted surface-mount vertical, the connector stands 5.10 mm above the board; the housing is black UL94 V-0 rated PA6T.
The pitch is 0.039" (1.00 mm) and the connector has 30 positions.
JST confirms RoHS compliance. The housing material is rated UL94 V-0.
