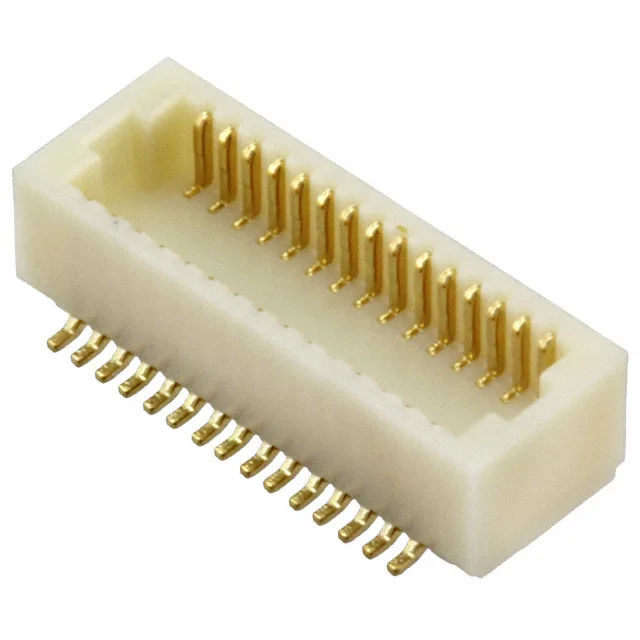

30P3.5-JMCS-G-TF(N) — JST product photo
JST

JST JMC Series 30P3.5-JMCS-G-TF(N) Plug, 30 Pos

MPN30P3.5-JMCS-G-TF(N)
Obsolete

JST JMC series plug, outer shroud contacts, 30 positions, 2 rows, 0.020" (0.50mm) pitch, 3.5mm mated stacking height, surface mount, gold contact finish, Tape & Reel.

$0.6200Ref. price · indicative, final on quote
30P3.5-JMCS-G-TF(N) datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

30P3.5-JMCS-G-TF(N) Technical Specifications
ParameterValue
SeriesJMC
Mounting typeSurface Mount
Connector typePlug, Outer Shroud Contacts
Mated stacking heights3.5mm
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
Contact finishGold
Rows2
Positions30

Product details

0.50mm Pitch, 30-Position JMC Plug — 3.5mm Stack Height

It uses a 0.50mm pitch and mates to a corresponding receptacle to achieve a 3.5mm mated stack height — a tight z-height budget for compact portable electronics, handheld tools, or sensor modules where every millimeter of board spacing is allocated. The connector carries gold-plated contacts across two rows, with the plug using outer shroud contacts that protect the mating interface during alignment.

Obsolete — No Official Replacement Listed

This part is officially marked Obsolete. There is no direct successor order code published by JST for the 30P3.5-JMCS-G-TF(N). For a BOM line that requires this exact footprint and stack height, the available supply is limited to surplus and broker channels.

Fit and Mating

The 0.50mm pitch and 30-position count define the board footprint — the same as the matching JMC receptacle. The 3.5mm mated stack height is fixed by this plug and its receptacle; there is no height adjustment.

Frequently asked questions

Where can I buy 30P3.5-JMCS-G-TF(N)?

Availability is confirmed at quote time — submit a request for current pricing and lead time.

Is 30P3.5-JMCS-G-TF(N) obsolete?

Yes, the JST JMC series 30P3.5-JMCS-G-TF(N) is officially listed as Obsolete. No direct replacement part number has been published.

What is the pitch of 30P3.5-JMCS-G-TF(N)?

The pitch is 0.020" (0.50mm), standard for the JMC series mezzanine connectors.
