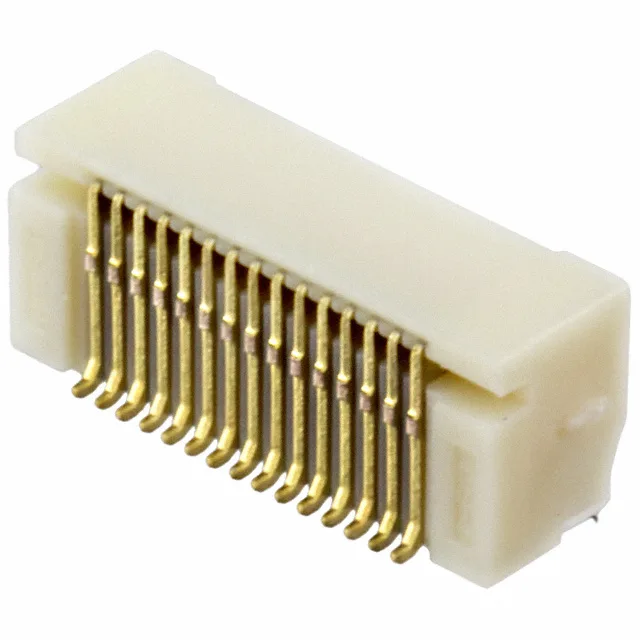

JAE JMC 30PS-JMCS-G-1B-TF(N)(LF)(SN) Plug, 30 Pos

MPN30PS-JMCS-G-1B-TF(N)(LF)(SN)
Obsolete

JAE JMC series, 30PS-JMCS-G-1B-TF(N)(LF)(SN), 30-position plug, outer shroud contacts, 0.020" (0.50mm) pitch, 2 rows, right-angle surface mount, gold contact finish.

$1.6300Ref. price · indicative, final on quote
30PS-JMCS-G-1B-TF(N)(LF)(SN) datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

30PS-JMCS-G-1B-TF(N)(LF)(SN) Technical Specifications
ParameterValue
SeriesJMC
Mounting typeSurface Mount, Right Angle
Connector typePlug, Outer Shroud Contacts
Height above board0.170\" (4.33mm)
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR)
FeaturesBoard Guide, Solder Retention
Contact finishGold
Rows2
Positions30

Product details

JAE JMC 30-Position Plug — 0.50mm Pitch, Right-Angle SMT

Its 0.020" (0.50mm) pitch packs 30 circuits into a compact 2-row layout, with each row carrying 15 contacts.

This part is marked obsolete per the manufacturer's lifecycle record. For BOM lines that specify this exact order code, procurement should plan for last-time-buy or surplus-channel sourcing.
