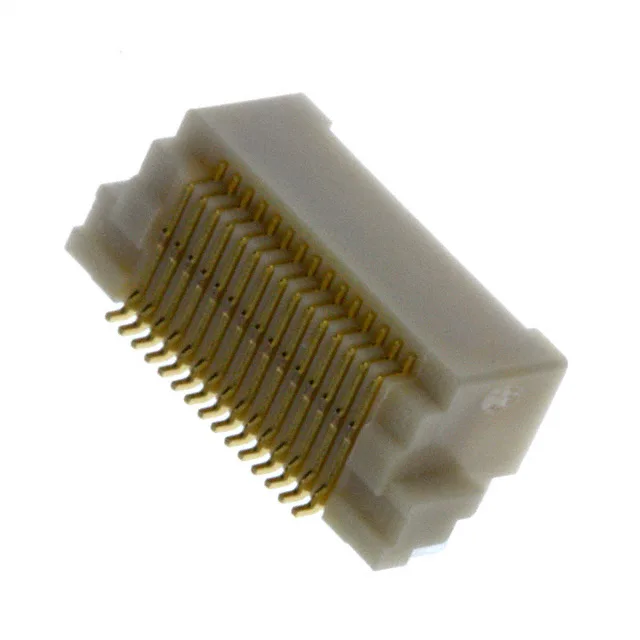

JST 30PS-JMDSS-G-1-TF(LF)(SN) JMD Series Plug, 30 Pos

MPN30PS-JMDSS-G-1-TF(LF)(SN)
Active

JST JMD series plug, outer shroud contacts, 30 positions, 2 rows, 0.020" (0.50mm) pitch, surface mount right angle, gold contact finish, solder retention, 4.80mm height above board.

$1.4200Ref. price · indicative, final on quote
30PS-JMDSS-G-1-TF(LF)(SN) datasheet
StockIn Stock (26)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

30PS-JMDSS-G-1-TF(LF)(SN) Technical Specifications
ParameterValue
SeriesJMD
Mounting typeSurface Mount, Right Angle
Connector typePlug, Outer Shroud Contacts
Height above board0.189\" (4.80mm)
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions30

Product details

JST JMD 30-Position Plug — 0.50 mm Pitch, Right-Angle SMT

The JST 30PS-JMDSS-G-1-TF(LF)(SN) is a 30-position plug from the JMD series, using outer shroud contacts on a 0.020" (0.50mm) pitch in a dual-row layout. This is the highest-density member of the JMD family by position count — the 0.50 mm pitch keeps the board footprint compact for flex-circuit or FPC interconnects where routing space is tight.

Right-Angle SMT with Solder Retention

The 0.189" (4.80mm) height above board sets the z-axis clearance for the mating receptacle and cable bend radius. Solder retention features on the body anchor the connector during reflow and add mechanical hold against shear forces from cable strain, which is a practical concern for flex-circuit assemblies that see handling during integration.
