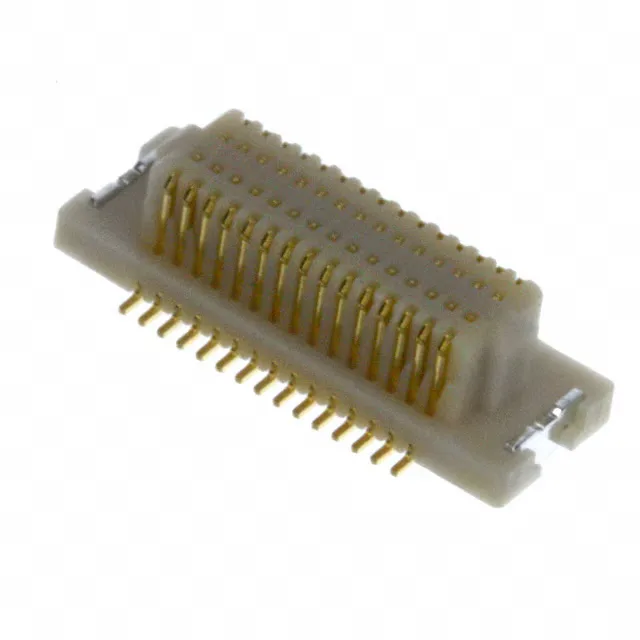

JST JMD 30R-JMDSS-G-1-TF(S)(LF)(SN)

MPN30R-JMDSS-G-1-TF(S)(LF)(SN)
Active

JST JMD series, 30-position receptacle, 0.020" (0.50mm) pitch, dual-row, surface mount, gold contact finish, solder retention, mated stacking heights 4.5mm, 5mm, 6mm.

$1.5400Ref. price · indicative, final on quote
30R-JMDSS-G-1-TF(S)(LF)(SN) datasheet
StockIn Stock (28)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

30R-JMDSS-G-1-TF(S)(LF)(SN) Technical Specifications
ParameterValue
SeriesJMD
Mounting typeSurface Mount
Connector typeReceptacle, Center Strip Contacts
Height above board0.122\" (3.10mm)
Mated stacking heights4.5mm, 5mm, 6mm
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions30

Product details

0.50mm Pitch, 30-Position Mezzanine Receptacle

The 0.020" (0.50mm) pitch and dual-row layout pack 30 circuits into a compact footprint, suited for dense PCB layouts in consumer electronics, portable devices, and industrial control modules where signal routing density is a priority.

Mated Stacking Heights: 4.5mm, 5mm, 6mm

Three mated stacking heights are specified: 4.5mm, 5mm, and 6mm. This gives the board designer flexibility to set the inter-board gap for component clearance or airflow without changing the receptacle — the mating plug height determines the final stack. The 0.122" (3.10mm) height above board of this receptacle is a fixed reference for the bottom board.

30 vs 20 Positions — Same Footprint, Different Density

The 30-position 30R-JMDSS-G-1-TF(S)(LF)(SN) shares the same 0.020" (0.50mm) pitch, dual-row layout, and 0.122" (3.10mm) height above board as the 20-position 20R-JMDSS-G-1-TF. The difference is 10 additional circuits in the same body length — a direct swap on the board footprint if your BOM calls for more I/O. The 40-position variant (40R-JMDSS-G-1-TF) extends the same pattern further.

The JST JMD series, including this 30-position receptacle, carries an Active lifecycle status.
