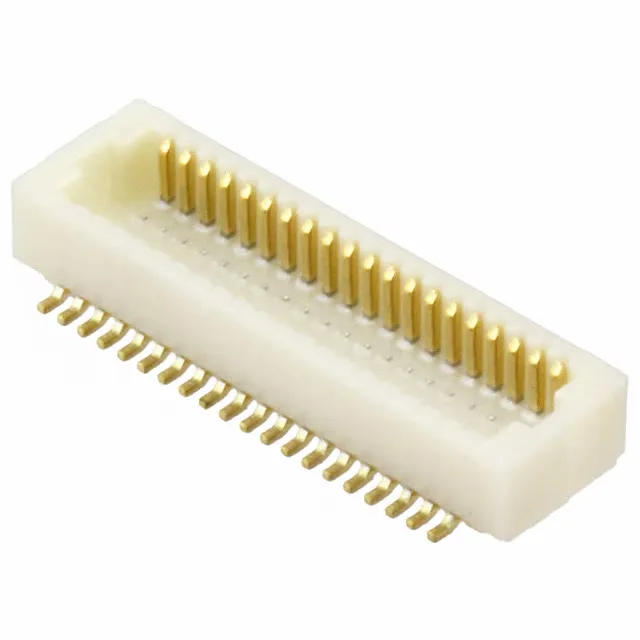

40P3.0-JMCS-G-TF(N) — JST product photo
JST

Hirose 40P3.0-JMCS-G-TF(N) JMC Series Plug, 40 Pos

MPN40P3.0-JMCS-G-TF(N)
Obsolete

Hirose JMC series plug, outer shroud contacts, 40 positions, 2 rows, 0.020" (0.50mm) pitch, surface mount, gold contact finish, 3mm mated stacking height.

$1.4200Ref. price · indicative, final on quote
40P3.0-JMCS-G-TF(N) datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

40P3.0-JMCS-G-TF(N) Technical Specifications
ParameterValue
SeriesJMC
Mounting typeSurface Mount
Connector typePlug, Outer Shroud Contacts
Mated stacking heights3mm
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
Contact finishGold
Rows2
Positions40

Product details

Board-to-Board Mezzanine Plug, 40 Positions, 0.50mm Pitch

Gold contact finish is standard on the mating interface.

Fit and Footprint Considerations

The 40 positions match a 40-circuit BOM line. The plug mates with the matching JMC receptacle (outer shroud contacts on the plug side).

Frequently asked questions

What is the mated stacking height of the 40P3.0-JMCS-G-TF(N)?

The mated stacking height is 3mm, which sets the z-height clearance between the two PCBs in the mezzanine stack.
