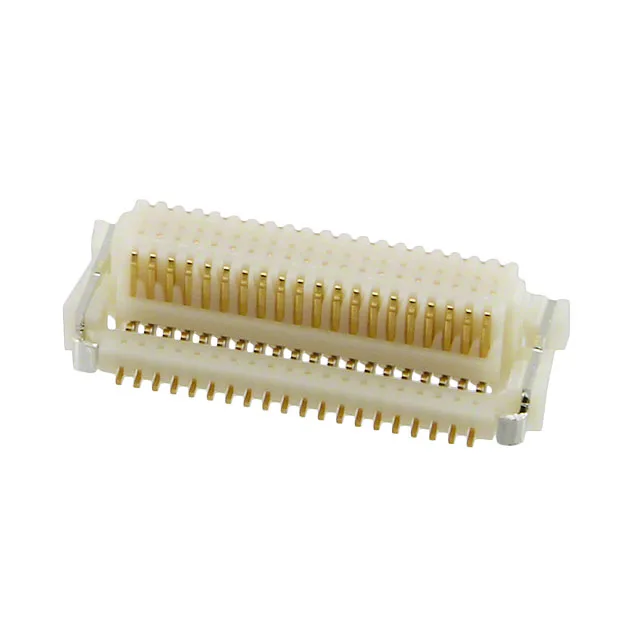

JST 40RF-JMCS-G-1-TF(N)(LF)(SN) 40-Pos 0.5mm FPC Receptacle

MPN40RF-JMCS-G-1-TF(N)(LF)(SN)
Obsolete

JST JMC series, 40-position 0.020" (0.50mm) pitch FPC receptacle, center strip contacts, surface mount, gold contact finish, 0.130" (3.30mm) height above board, solder retention.

$1.8500Ref. price · indicative, final on quote
40RF-JMCS-G-1-TF(N)(LF)(SN) datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

40RF-JMCS-G-1-TF(N)(LF)(SN) Technical Specifications
ParameterValue
SeriesJMC
Mounting typeSurface Mount
Connector typeReceptacle, Center Strip Contacts
Height above board0.130\" (3.30mm)
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions40

Product details

The JST 40RF-JMCS-G-1-TF(N)(LF)(SN) is a 40-position, 0.020" (0.50mm) pitch FPC connector from the JMC series. The 0.130" (3.30mm) height above board makes it suitable for tight stacking applications.

Fit and Key Specs

The 0.50mm pitch drives the board footprint — tight enough for routing density but standard for this class of FPC connector. The 3.30mm stack height is the z-height budget you need to clear under the mating FPC or another board. The gold finish on the contacts is a signal-grade plating, not power-grade — this connector is for signal lines, not bus-level current.

RoHS and Lead-Free Status

The "(LF)(SN)" suffix in the order code indicates the part is lead-free and RoHS compliant. The "(N)" denotes a halogen-free version. This is a standard compliance requirement for electronics sold into the EU and many other markets.

Frequently asked questions

What is the replacement for 40RF-JMCS-G-1-TF(N)(LF)(SN)?

A pin-compatible alternative would need to be verified against the 0.50mm pitch, 40-position count, 3.30mm height, and SMT footprint of the JMC series. Without an official cross-reference, each potential substitute must be checked for fit.

Is 40RF-JMCS-G-1-TF RoHS compliant?

Yes, the "(LF)(SN)" suffix in the order code indicates the part is lead-free and RoHS compliant. The "(N)" denotes a halogen-free version.

What is the height of 40RF-JMCS?

The height above board is 0.130" (3.30mm). This is the z-height from the PCB surface to the top of the connector body.
