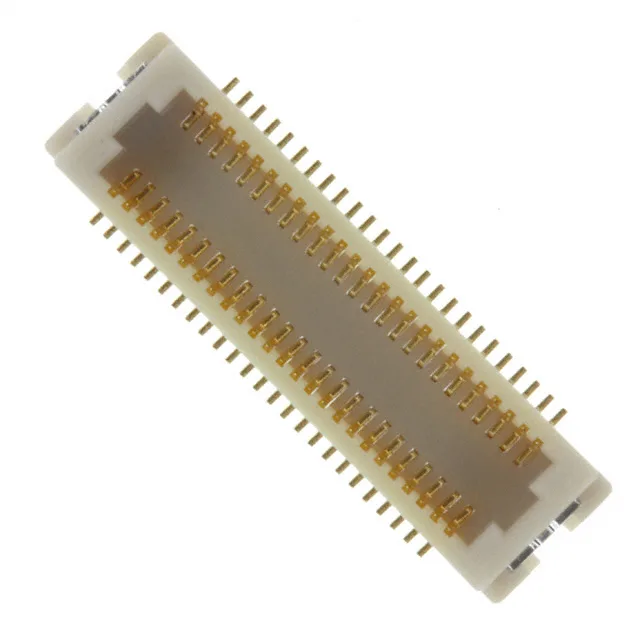

50P6.0-JMDSS-G-1-TF(LF)(SN) — JST product photo
JST

JST JMD 50P6.0-JMDSS-G-1-TF(LF)(SN) Plug, 0.50mm Pitch

MPN50P6.0-JMDSS-G-1-TF(LF)(SN)
Active

JST JMD series plug, outer shroud contacts, 50 positions, 2 rows, 0.020" (0.50mm) pitch, 6mm mated stacking height, surface mount, gold contact finish, solder retention features.

$2.0500Ref. price · indicative, final on quote
50P6.0-JMDSS-G-1-TF(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

50P6.0-JMDSS-G-1-TF(LF)(SN) Technical Specifications
ParameterValue
SeriesJMD
Mounting typeSurface Mount
Connector typePlug, Outer Shroud Contacts
Mated stacking heights6mm
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions50

Product details

0.50mm Pitch, 6mm Stack — JST JMD Plug for Dense Board-to-Board Links

The JST JMD series 50P6.0-JMDSS-G-1-TF(LF)(SN) is a 50-position plug with outer shroud contacts, designed for parallel board-to-board stacking at a fixed 6mm mated height. The 0.020" (0.50mm) pitch packs 50 circuits into a compact dual-row footprint, suited for high-density signal interconnects in portable electronics, consumer devices, and industrial control modules where board real estate is tight.

Gold Contacts and Solder Retention for Reliable SMT Assembly

The surface-mount termination suits automated pick-and-place assembly, and the solder retention features anchor the part to the board during reflow and under vibration, reducing the risk of lifted pads in the field.

Frequently asked questions

What is the pitch and number of positions of 50P6.0-JMDSS-G-1-TF(LF)(SN)?

The JST 50P6.0-JMDSS-G-1-TF(LF)(SN) has a pitch of 0.020" (0.50mm) and 50 positions arranged in 2 rows.

What is the mated stacking height of 50P6.0-JMDSS-G-1-TF(LF)(SN)?

The mated stacking height for this JST JMD plug is 6mm.
