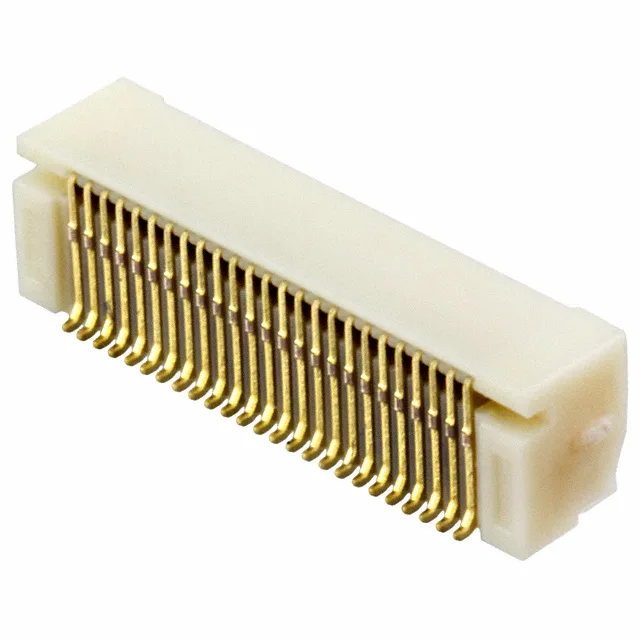

50PS-JMCS-G-1B-TF(N)(LF)(SN) — JST product photo
JST

JST 50PS-JMCS-G-1B-TF(N)(LF)(SN) JMC Series 50-Position

MPN50PS-JMCS-G-1B-TF(N)(LF)(SN)
Obsolete

JST JMC series, 50PS-JMCS-G-1B-TF(N)(LF)(SN), 50-position plug, 0.020" (0.50mm) pitch, dual-row, right-angle SMT, gold-plated outer shroud contacts.

$0.5000Ref. price · indicative, final on quote
50PS-JMCS-G-1B-TF(N)(LF)(SN) datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

50PS-JMCS-G-1B-TF(N)(LF)(SN) Technical Specifications
ParameterValue
SeriesJMC
Mounting typeSurface Mount, Right Angle
Connector typePlug, Outer Shroud Contacts
Height above board0.170\" (4.33mm)
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesBoard Guide, Solder Retention
Contact finishGold
Rows2
Positions50

Product details

50-Position JST JMC Plug at 0.50mm Pitch

The JST 50PS-JMCS-G-1B-TF(N)(LF)(SN) is a 50-position plug from the JMC series, built with outer shroud contacts on a 0.020" (0.50mm) pitch in a dual-row arrangement. This is a fine-pitch, high-density interconnect — the 50 circuits pack into a board footprint that stays compact, making it a fit for space-constrained designs like handheld devices, camera modules, or internal display links.

Board Fit and Mounting

The right-angle SMT termination requires a reflow solder profile compatible with the gold-plated contacts. The 0.170" (4.33mm) height above board sets the z-axis clearance for the mating receptacle — check your enclosure height budget against this dimension. The 0.50mm pitch means the PCB footprint needs tight routing discipline — trace widths and spacing below 0.25mm are typical for the escape routing on inner layers.

The dual-row, 50-position layout is keyed by the shroud geometry — it is not compatible with other JST series like FM or GH, which use different pitch, contact spacing, and housing keying.

Frequently asked questions

Where can I buy 50PS-JMCS-G-1B-TF(N)(LF)(SN) and what is the lead time?

Submit an RFQ for the quantity and lead time specific to your BOM line.

What is the pitch and pin count of JST 50PS-JMCS-G-1B-TF(N)(LF)(SN)?

This connector has 50 positions on a 0.020" (0.50mm) pitch arranged in two rows. The 0.50mm pitch is the defining footprint dimension — verify your PCB land pattern matches this spacing before ordering.
