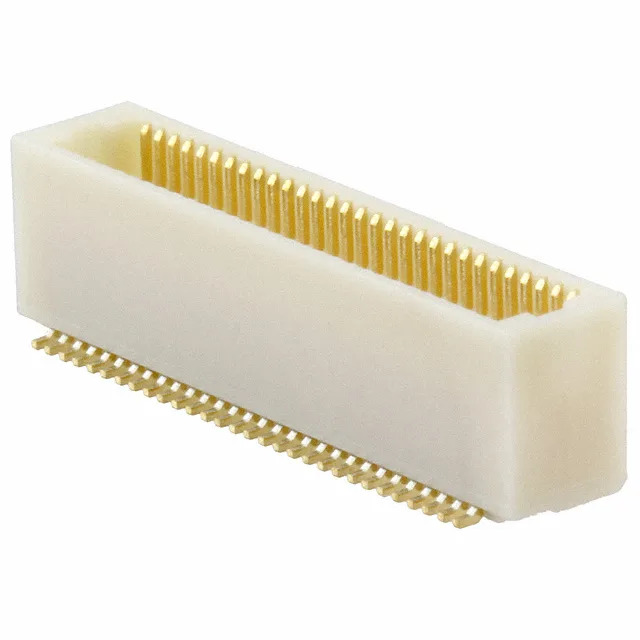

JST 60P5.5-JMCS-G-TF(N) JMC Series Plug, 60 Pos

MPN60P5.5-JMCS-G-TF(N)
Obsolete

JST JMC series plug, outer shroud contacts, 60 positions, 0.020" (0.50mm) pitch, 2 rows, 5.5mm mated stacking height, gold contact finish, surface mount, Tape & Reel.

$1.9200Ref. price · indicative, final on quote
60P5.5-JMCS-G-TF(N) datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

60P5.5-JMCS-G-TF(N) Technical Specifications
ParameterValue
SeriesJMC
Mounting typeSurface Mount
Connector typePlug, Outer Shroud Contacts
Mated stacking heights5.5mm
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR)
Contact finishGold
Rows2
Positions60

Product details

Mezzanine Board-to-Board Plug for Tight Stack Heights

The JST 60P5.5-JMCS-G-TF(N) is a 60-position plug from the JMC series, designed for parallel board-to-board mezzanine connections with a fixed mated stacking height of 5.5 mm. The connector uses a 0.020" (0.50 mm) pitch across two rows, giving 30 contacts per row for dense signal routing between stacked PCBs.

Sourcing an Obsolete Part for Legacy BOMs

JST has marked the 60P5.5-JMCS-G-TF(N) as obsolete. No official successor part number is listed in the lifecycle record.

The 60 positions in two rows means a board footprint roughly 15 mm long by 4-5 mm wide, depending on the row-to-row spacing in the JMC series layout.

Termination is surface mount, supplied in Tape & Reel packaging for automated pick-and-place assembly.

Frequently asked questions

Is 60P5.5-JMCS-G-TF(N) obsolete?

Yes, JST has officially listed the 60P5.5-JMCS-G-TF(N) as obsolete. No direct replacement part number has been assigned. The part is available through surplus and broker channels — submit an RFQ for current availability and pricing.

What is the pitch of 60P5.5-JMCS-G-TF(N)?

The pitch is 0.020" (0.50 mm), which is standard for the JMC series mezzanine connectors. This fine pitch drives the PCB trace routing density and board fab capability required for the layout.
