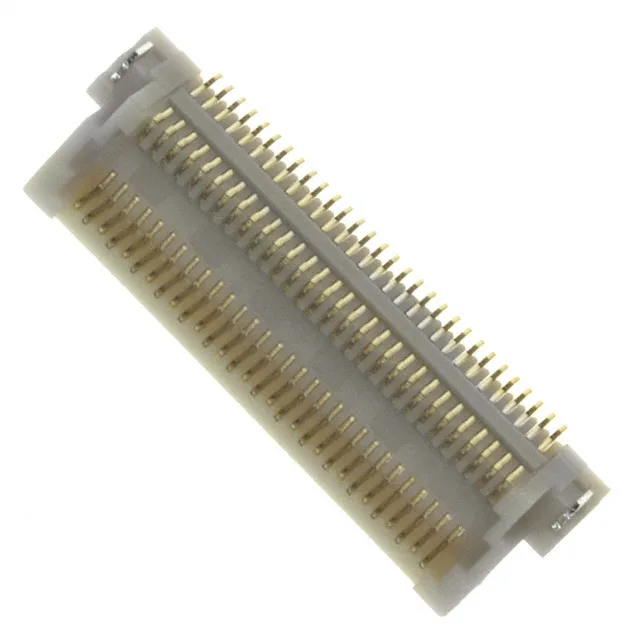

60PS-JMDSS-G-1-TF(LF)(SN) — JST product photo
JST

JST JMD 60PS-JMDSS-G-1-TF(LF)(SN) Plug, 0.50mm Pitch, 60 Pos

MPN60PS-JMDSS-G-1-TF(LF)(SN)
Active

JST JMD series, 60-position plug, outer shroud contacts, 0.020" (0.50mm) pitch, dual-row, right-angle surface mount, gold contact finish, solder retention.

$1.3049Ref. price · indicative, final on quote
60PS-JMDSS-G-1-TF(LF)(SN) datasheet
StockIn Stock (27)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

60PS-JMDSS-G-1-TF(LF)(SN) Technical Specifications
ParameterValue
SeriesJMD
Mounting typeSurface Mount, Right Angle
Connector typePlug, Outer Shroud Contacts
Height above board0.189\" (4.80mm)
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions60

Product details

The JST 60PS-JMDSS-G-1-TF(LF)(SN) is a 60-position plug from the JMD series, designed for fine-pitch FPC-to-board interconnects. With a 0.020" (0.50mm) pitch and dual-row outer shroud contacts, it routes a dense signal bundle through a right-angle surface-mount footprint — the 4.80mm height above board keeps the assembly low-profile in stacked or mezzanine layouts.

Pitch, Positions, and the Board Footprint

Surface-mount, right-angle termination — the connector sits flat on the PCB pads and the contacts reflow in a standard SMT line. The outer shroud contacts wrap around the FPC edge, aligning the conductors to the pads before reflow.
