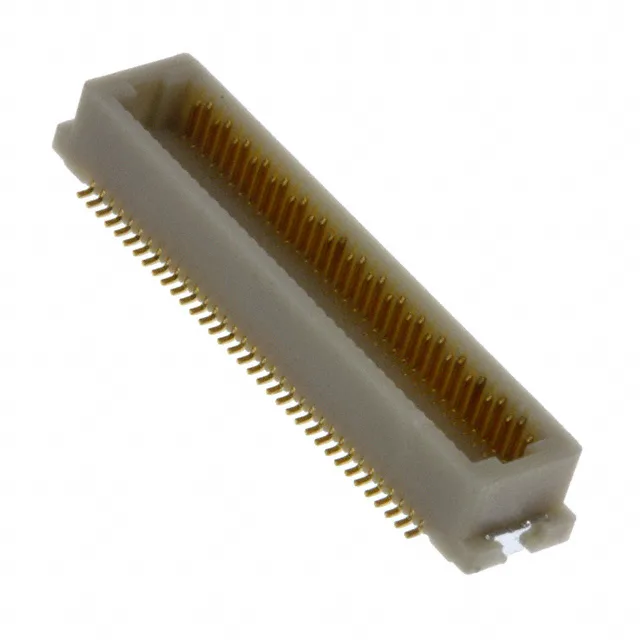

70P-JMDSS-G-1-TF(LF)(SN) — JST product photo
JST

JST 70P-JMDSS-G-1-TF(LF)(SN) Plug, 70 Pos, 0.50mm Pitch

MPN70P-JMDSS-G-1-TF(LF)(SN)
Active

JST JMD series plug, outer shroud contacts, 70 positions, 2 rows, 0.020" (0.50mm) pitch, surface mount, gold contact finish, 4.5mm mated stack height, solder retention feature.

$2.6900Ref. price · indicative, final on quote
70P-JMDSS-G-1-TF(LF)(SN) datasheet
StockIn Stock (18)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

70P-JMDSS-G-1-TF(LF)(SN) Technical Specifications
ParameterValue
SeriesJMD
Mounting typeSurface Mount
Connector typePlug, Outer Shroud Contacts
Mated stacking heights4.5mm
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions70

Product details

0.50mm Pitch, 70-Position Board-to-Board Plug

It uses a 0.50mm pitch and a dual-row configuration of outer shroud contacts, with a mated stack height of 4.5mm. Gold contact finish and the solder retention feature make it suited for dense, reliable interconnects in compact electronics.

The gold contact finish supports repeated mating cycles, which matters if the boards are field-serviceable or need to be disconnected during test. The solder retention feature holds the connector in place during reflow, reducing tombstoning risk on the fine-pitch joints.

Frequently asked questions

Where can I buy the 70P-JMDSS-G-1-TF(LF)(SN)?

Submit a request for quote to confirm current availability and pricing.

What is the mated stack height of the 70P-JMDSS-G-1-TF(LF)(SN)?

The mated stack height is 4.5mm, which sets the spacing between the two PCBs in a mezzanine configuration.
