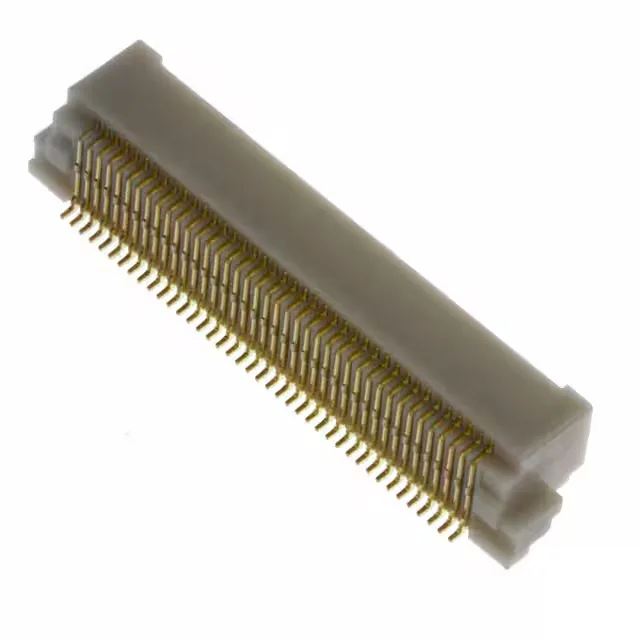

JST JMD series plug, 80 positions, 0.020" (0.50mm) pitch, 2 rows, right-angle surface mount, gold contact finish, solder retention, 4.80mm height above board.
| Parameter | Value |
|---|---|
| Series | JMD |
| Mounting type | Surface Mount, Right Angle |
| Connector type | Plug, Outer Shroud Contacts |
| Height above board | 0.189\" (4.80mm) |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 80 |
The JST 80PS-JMDSS-G-1-TF(LF)(SN) is the 80-circuit plug from the JMD series, a fine-pitch board-to-board interconnect family.
On a 0.50mm pitch part with 80 circuits, the retention anchors take the mechanical load off the fine-pitch signal tails, which are not designed to handle board flex or repeated cable tug.
Submit an RFQ for the quantity you need.
Yes, it is available in Tape & Reel (TR) and Cut Tape (CT) packaging.
Yes, it is listed as RoHS Compliant.
The height above board is 0.189" (4.80mm).
