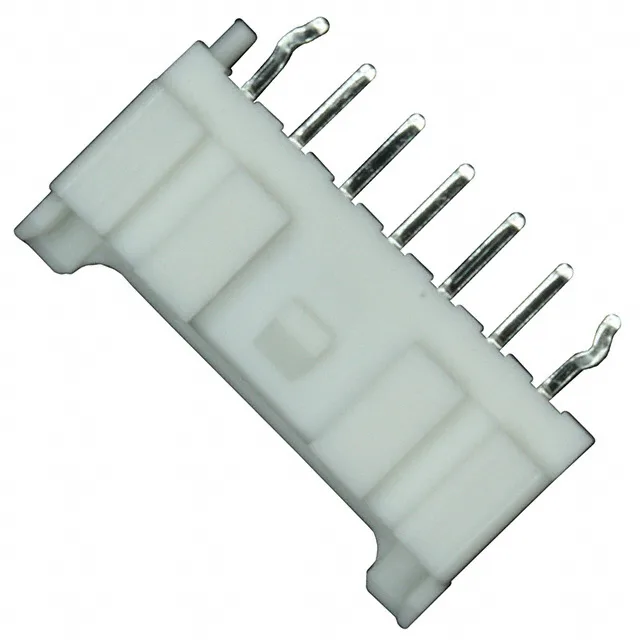

B07B-PASK-1(LF)(SN) — JST product photo
JST

JST B07B-PASK-1(LF)(SN) PA Series Header – 7 Pos

MPNB07B-PASK-1(LF)(SN)
Active

JST PA series, Board to Cable/Wire, 7 Positions, 2.00 mm Pitch, Shrouded – 4 Wall, Through Hole, Tin Contact Finish, 3 A, 250 V, UL94 V-0, Bulk

$0.4700Ref. price · indicative, final on quote
B07B-PASK-1(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

B07B-PASK-1(LF)(SN) Technical Specifications
ParameterValue
SeriesPA
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current rating3A
Operating temperature-25°C~85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.303\" (7.70mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
Mated stacking heights9.9mm, 14.7mm, 14.9mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
Contact shapeSquare
Rows1
Pitch0.079\" (2.00mm)
Positions7
Contact finish - postTin
Contact length - post0.118\" (3.00mm)
Overall contact length0.319\" (8.10mm)
Contact finish - matingTin
Contact length - mating0.126\" (3.20mm)

Product details

2.00 mm Pitch, 7-Position Shrouded Header for Wire-to-Board

Tin-plated mating contacts are rated for standard duty cycles; the kinked solder tails (3.00 mm post length) anchor the header through the PCB for reliable wave-solder assembly.

Mating Half and Stack Height Options

This header mates with JST PA series crimp-style receptacle housings (sold separately). The mated stack height can be 9.9 mm, 14.7 mm, or 14.9 mm depending on the receptacle variant selected — confirm the mating part number for your harness assembly.

Tin-plated contacts and PBT insulation are RoHS-compliant per the (LF)(SN) suffix designation.

Frequently asked questions

What is the mating connector for JST B07B-PASK-1?

The mating half is a JST PA series crimp receptacle housing. The mated stack height options are 9.9 mm, 14.7 mm, or 14.9 mm depending on the receptacle variant.

Is B07B-PASK-1(LF)(SN) RoHS compliant?

Yes — the (LF)(SN) suffix indicates lead-free and tin-plated contacts, consistent with RoHS compliance. The PBT housing is also RoHS-compatible.
