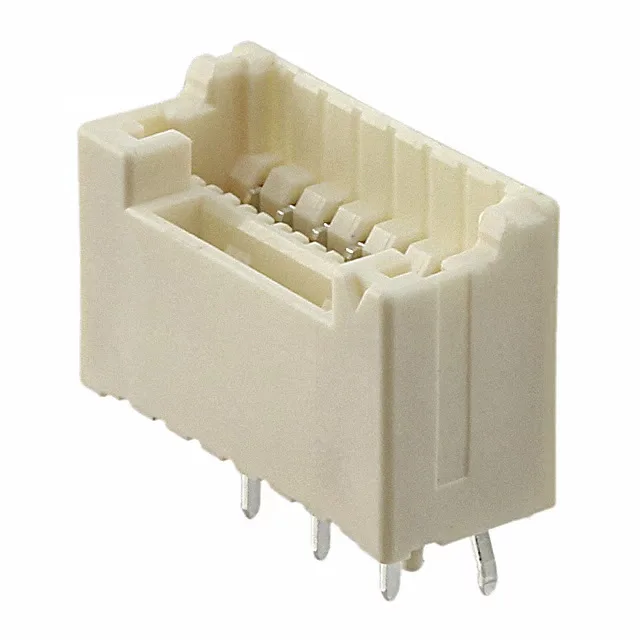

B07B-ZESK-1D(T)(LF)(SN)(N) — JST product photo
JST

JST ZE B07B-ZESK-1D(T)(LF)(SN)(N) Header, 7 Pos, 1.50 mm

MPNB07B-ZESK-1D(T)(LF)(SN)(N)
Active

JST ZE series header, order code B07B-ZESK-1D(T)(LF)(SN)(N), 7 positions, single row, 1.50 mm pitch, 2 A, 100 V, tin-plated mating contacts, through-hole, kinked pin solder termination, shrouded 4-wall, locking ramp.

$0.7500Ref. price · indicative, final on quote
B07B-ZESK-1D(T)(LF)(SN)(N) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

B07B-ZESK-1D(T)(LF)(SN)(N) Technical Specifications
ParameterValue
SeriesZE
GenderOuter Shroud Contact
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating100V
Current rating2A
Operating temperature-25°C~85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.335\" (8.51mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
Contact shapeRectangular
Rows1
Pitch0.059\" (1.50mm)
Positions7
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Contact finish - matingTin

Product details

7-circuit ZE header with shrouded locking ramp

The B07B-ZESK-1D(T)(LF)(SN)(N) is the 7-circuit member of JST's ZE series board-to-cable/wire header line.

Locking ramp and shrouded housing

The 4-wall shrouded housing with a locking ramp secures the mating receptacle against vibration-induced disconnect.

Frequently asked questions

What is the connector style and series for B07B-ZESK-1D(T)(LF)(SN)(N)?

The style is Board to Cable/Wire and the series is ZE.
