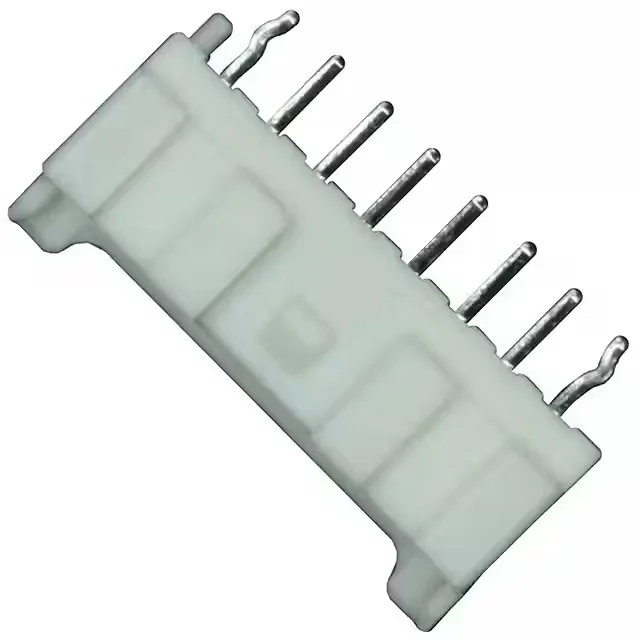

JST PA series header, order code B08B-PASK-1(LF)(SN), 8 positions, single row, 2.00 mm pitch, 3 A, 250 V, tin-plated mating contacts, through-hole, kinked pin solder termination, shrouded - 4 wall, locking ramp.
| Parameter | Value |
|---|---|
| Series | PA |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.303\" (7.70mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mated stacking heights | 9.9mm, 14.7mm, 14.9mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.319\" (8.10mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.126\" (3.20mm) |
The B08B-PASK-1(LF)(SN) is the 8-position member of JST's PA series board-to-wire header line. It carries tin-plated male pin contacts rated 3 A at 250 V, mounts through-hole with kinked solder pins, and uses a locking ramp for positive retention against vibration.
Pricing and lead time are confirmed against the BOM quantity at RFQ; the part ships in bulk packaging.
