Mating and termination checklist
The B10B-PNDZS-1(T)(LF)(SN): This header mates with JST PND series receptacles (housing + crimp terminals). Termination is solder to the through-hole posts — no press-fit or IDC option.

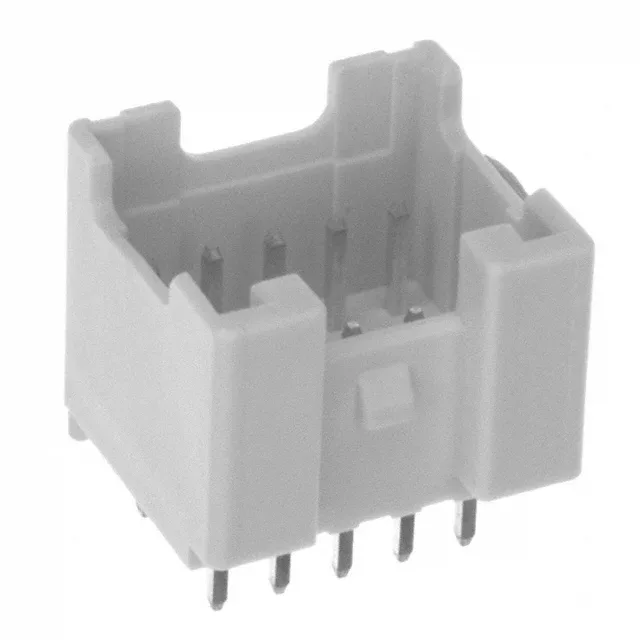

JST Sales America Inc. PND series, Board to Cable/Wire, Header, Male Pin, 10 circuits, 2.00mm pitch, 2 rows, Through Hole, Solder termination, Tin contacts, Locking ramp, UL94 V-0, -25°C~85°C, 3A, 250V.
$0.4700Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | PND |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Copper Alloy |
| Insulation color | Ivory |
| Insulation height | 0.390\" (9.91mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mated stacking heights | 12.9mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.197\" (5.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
What is the mating connector for B10B-PNDZS-1(T)(LF)(SN)?
It mates with JST PND series receptacles — the housing and crimp terminals are separate line items.
