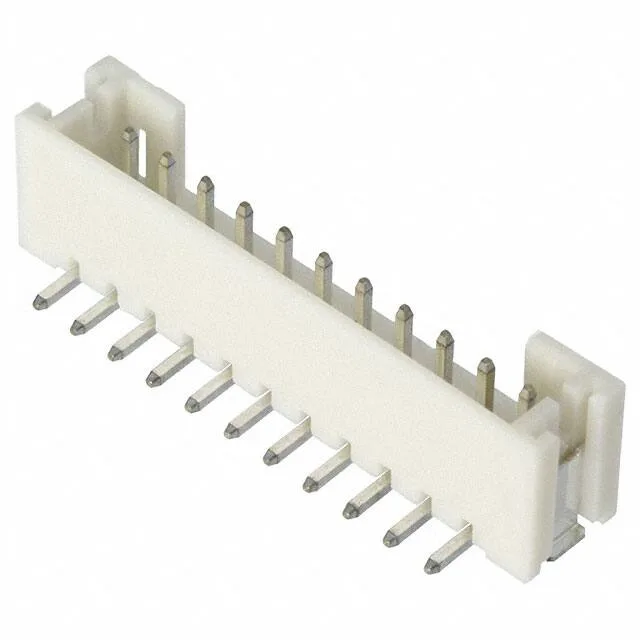

B11B-PH-SM4-TB(LF)(SN) JST PH 11-Pin SMD Header – 2.00mm

MPNB11B-PH-SM4-TB(LF)(SN)
Active

JST Sales America Inc., PH series, Board to Cable/Wire, Header, Male Pin, 11 Positions, 2.00mm Pitch, Surface Mount, Shrouded – 4 Wall, Tin Mating Finish, 2 A, 100 V, UL94 V-0.

$1.2700Ref. price · indicative, final on quote
B11B-PH-SM4-TB(LF)(SN) datasheet
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

B11B-PH-SM4-TB(LF)(SN) Technical Specifications
ParameterValue
SeriesPH
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typeDetent Lock
Voltage rating100V
Current rating2A
Operating temperature-25°C~85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.260\" (6.60mm)
Insulation materialPolyamide (PA6T), Nylon 6T
Mated stacking heights8.6mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.079\" (2.00mm)
Positions11
Contact finish - postTin
Contact finish - matingTin
Contact length - mating0.130\" (3.30mm)

Product details

2.00mm Pitch, 11-Position SMD Header – JST PH Series

The B11B-PH-SM4-TB(LF)(SN): This is an 11-position, single-row surface-mount header from JST's PH series, with a 2.00mm pitch that sets the PCB footprint and per-contact current ceiling.

When mated with the matching PH receptacle, the assembly achieves a stack height of 8.6 mm – a dimension that governs the z-height clearance in board-to-cable routing.

Comparing the 11-Position to 10- and 13-Position Siblings

Within the same PH-SM4-TB(LF)(SN) family, the 10-position B10B-PH-SM4-TB and 13-position B13B-PH-SM4-TB(LF)(SN) share identical pitch, current rating, stack height, and shrouding. The only difference is circuit count – choose the one that matches your BOM position count.

Frequently asked questions

What is the pinout of B11B-PH-SM4-TB(LF)(SN)?

This is a single-row, 11-position header with all positions loaded. The pinout is a linear 1-to-11 arrangement matching the JST PH receptacle housing. No keying or polarity beyond the shrouded wall orientation.
