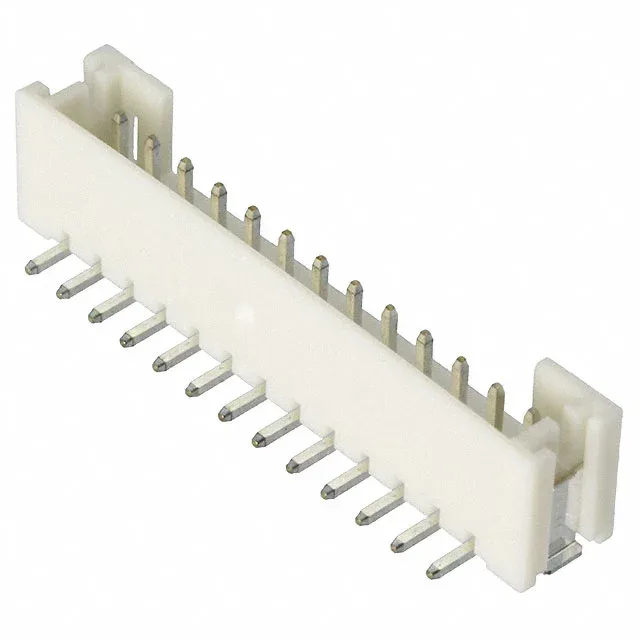

2.00 mm Pitch, 13-Position SMT Header
The 8.6 mm mated stack height sets the z-height clearance in the assembly.
It mates with JST PH-series crimp receptacle housings (e.g., PHR-xx) using the appropriate crimp terminals (SPH-002T-P0.5S).
JST PH Series, Board to Cable/Wire, Header, Male Pin, 13 Positions, 2.00 mm Pitch, Surface Mount, Shrouded - 4 Wall, Detent Lock, Tin Contacts, UL94 V-0
$1.3700Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | PH |
| Gender | Male Pin |
| Mounting type | Surface Mount |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 100V |
| Current rating | 2A |
| Operating temperature | -25°C~85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.260\" (6.60mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T |
| Mated stacking heights | 8.6mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 13 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.130\" (3.30mm) |
Product details
Frequently asked questions
What is the mating receptacle for B13B-PH-SM4-TB(LF)(SN)?
It mates with JST PH-series crimp receptacle housings (e.g., PHR-13) using SPH-002T-P0.5S terminals.
Is B13B-PH-SM4-TB(LF)(SN) RoHS compliant?
Yes, it is RoHS compliant per the listing.
What is the closest pin-compatible alternative to B13B-PH-SM4-TB(LF)(SN) in the PH series?
No direct pin-compatible alternative is listed. The PH series includes other position counts, but a 13-position header is a specific variant. Confirm the BOM position count before substituting.
