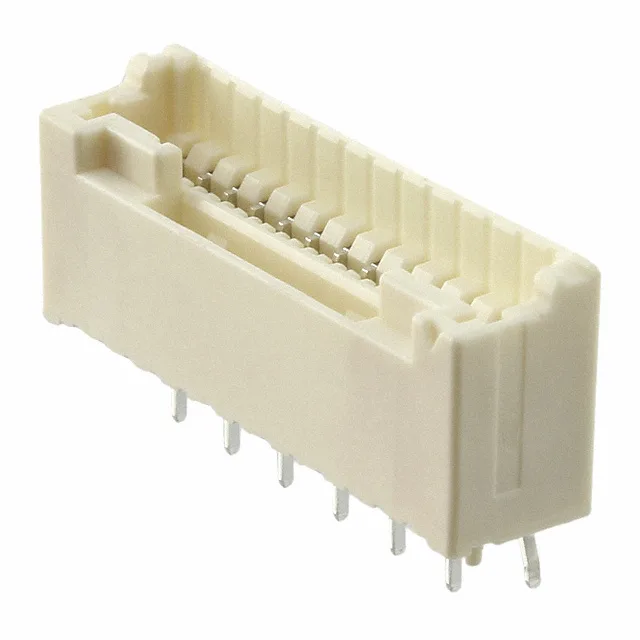

B13B-ZESK-1D(T)(LF)(SN)(N) — JST product photo
JST

JST B13B-ZESK-1D(T)(LF)(SN)(N) ZE Series Header – 13

MPNB13B-ZESK-1D(T)(LF)(SN)(N)
Active

JST ZE series, Board to Cable/Wire, Header, Shrouded - 4 Wall, 13 Positions, 1.50mm Pitch, Through Hole, Kinked Pin Solder, Tin Plating, Locking Ramp, UL94 V-0, -25°C ~ 85°C

$0.6433Ref. price · indicative, final on quote
B13B-ZESK-1D(T)(LF)(SN)(N) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

B13B-ZESK-1D(T)(LF)(SN)(N) Technical Specifications
ParameterValue
SeriesZE
GenderOuter Shroud Contact
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating100V
Current rating2A
Operating temperature-25°C ~ 85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.335\" (8.51mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
Contact shapeRectangular
Rows1
Pitch0.059\" (1.50mm)
Positions13
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Contact finish - matingTin

Product details

Mating Housing and Termination Details

The B13B-ZESK-1D(T)(LF)(SN)(N): Termination is kinked pin solder for through-hole mounting – the kink provides a mechanical lock in the PCB hole before soldering, reducing skew during reflow or wave solder.

No stock-holding claim is made; we source from our multi-supplier network.

Frequently asked questions

What housing mates with JST B13B-ZESK-1D(T)(LF)(SN)(N) header?

This header mates with JST ZE series crimp-style receptacle housings, such as the ZHR-13 (13-position, 1.50 mm pitch).
