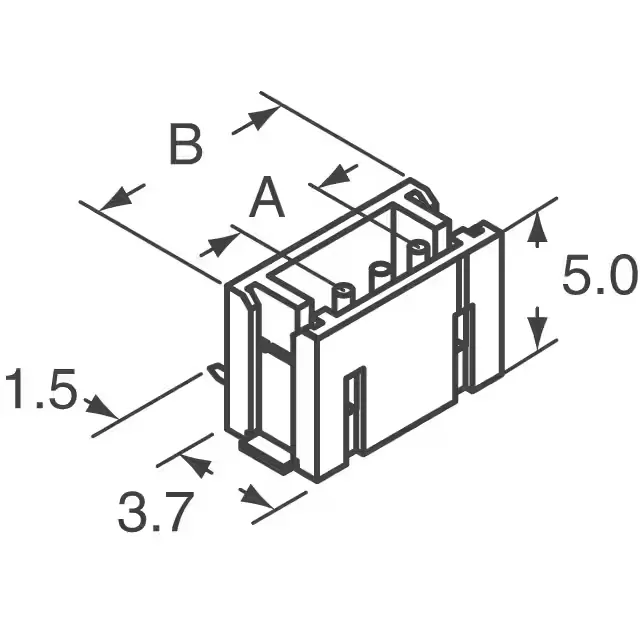

B13B-ZR-SM4-TF(LF)(SN) — JST product photo
JST

JST B13B-ZR-SM4-TF(LF)(SN) ZH Series Header, 13-Pos, 1.5mm

MPNB13B-ZR-SM4-TF(LF)(SN)
Active

JST ZH series, 13-position SMT header, 1.50mm pitch, male pin, shrouded 4-wall, detent lock, 1 A, 50 V, tin-plated contacts, natural PA6T housing, UL94 V-0.

$1.1200Ref. price · indicative, final on quote
B13B-ZR-SM4-TF(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

B13B-ZR-SM4-TF(LF)(SN) Technical Specifications
ParameterValue
SeriesZH
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typeDetent Lock
Voltage rating50V
Current rating1A
Operating temperature-25°C~85°C
Contact materialBrass
Insulation colorNatural
Insulation height0.197\" (5.00mm)
Insulation materialPolyamide (PA6T), Nylon 6T, Glass Filled
Mated stacking heights6.4mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeCircular
Rows1
Pitch0.059\" (1.50mm)
Positions13
Contact finish - postTin
Contact finish - matingTin

Product details

13-Pin SMT Header for Tight Board-to-Wire Runs

The B13B-ZR-SM4-TF(LF)(SN): This is a 13-position, single-row SMT header from JST's ZH series — a 1.50mm pitch board-to-wire interconnect that fits where a 2.0mm or 2.54mm header is too wide for the routing density. The 1 A per-contact rating at 50 V suits signal-level and low-power distribution inside a compact PCB assembly.

SMT Footprint and Board Retention

The 5.00mm insulation height and 6.4mm mated stack height leave enough clearance for the mating receptacle's wire exit.

RoHS compliant.
