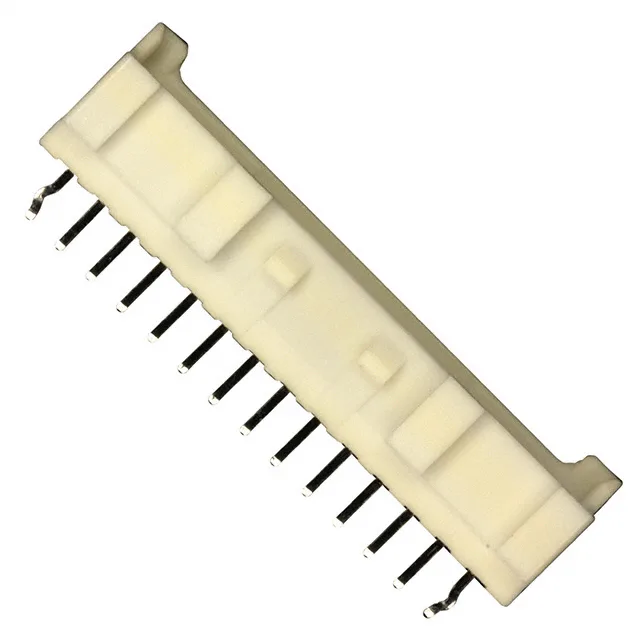

JST PA header, order code B14B-PASK(LF)(SN), 14 positions, single row, 2.00 mm pitch, 3 A, 250 V, tin-plated male pins, through-hole, kinked pin solder termination.
JST PA header, order code B14B-PASK(LF)(SN), 14 positions, single row, 2.00 mm pitch, 3 A, 250 V, tin-plated male pins, through-hole, kinked pin solder termination.
$0.5786Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | PA |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.303\" (7.70mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mated stacking heights | 9.9mm, 14.7mm, 14.9mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 14 |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.319\" (8.10mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.126\" (3.20mm) |
Product details
Frequently asked questions
Who supplies B14B-PASK(LF)(SN) and how is it quoted for volume purchases?
JST Sales America Inc. supplies the B14B-PASK(LF)(SN).
What compliance documentation does JST Sales America Inc. provide for B14B-PASK(LF)(SN)?
RoHS and REACH compliance documentation is available from the manufacturer.
