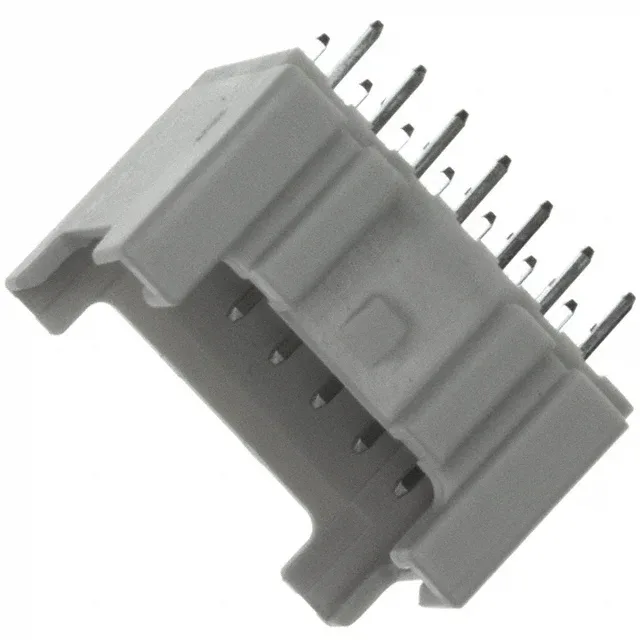

B14B-PNDZS-1 (T) (LF)(SN) — JST product photo
JST

B14B-PNDZS-1 (T) (LF)(SN) B14B-PNDZS-1 (T) (LF)(SN)

MPNB14B-PNDZS-1 (T) (LF)(SN)
Active

JST PND series, Board to Cable/Wire, Header, Male Pin, 14 Positions, 2.00mm Pitch, Through Hole, Solder, Shrouded - 4 Wall, Locking Ramp, 3A, 250V, UL94 V-0

$0.6300Ref. price · indicative, final on quote
B14B-PNDZS-1 (T) (LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

B14B-PNDZS-1 (T) (LF)(SN) Technical Specifications
ParameterValue
SeriesPND
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current rating3A
Operating temperature-25°C~85°C
Contact materialCopper Alloy
Insulation colorIvory
Insulation height0.390\" (9.91mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Mated stacking heights12.9mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions14
Row spacing - mating0.197\" (5.00mm)
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingTin

Product details

14-Position Dual-Row Header for Board-to-Wire Harnesses

The B14B-PNDZS-1 (T) (LF)(SN): The B14B-PNDZS-1 (T) (LF)(SN): The tin-plated mating finish is suited for moderate-cycle applications — think quarterly maintenance access rather than daily hot-swap. UL94 V-0 glass-filled nylon housing keeps the connector compliant inside enclosed equipment where flame rating matters.

Position Count and Pitch for BOM Matching

The 14-position B14B-PNDZS-1 sits between the 12-position B12B-PNDZS-1 and the 16-position B16B-PNDZS-1 in the same PND series. The choice comes down to the number of signal or power circuits your harness requires — no footprint or height change between them.

Frequently asked questions

What is the mating connector for B14B-PNDZS-1?

The B14B-PNDZS-1 header mates with a JST PND series receptacle housing that accepts crimp terminals. Confirm the circuit count and pitch match your receptacle before ordering.

Is B14B-PNDZS-1 (T) (LF)(SN) RoHS compliant?

Yes, the (LF)(SN) suffix indicates RoHS compliance and tin-plated contacts.
