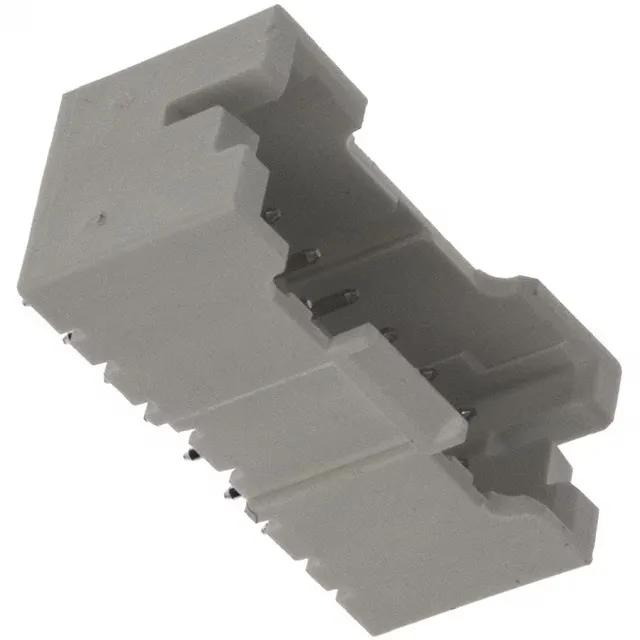

B14B-XADSS-N(LF)(SN) — JST product photo
JST

B14B-XADSS-N(LF)(SN) Header – JST XAD 14-Pos 2.5mm Pitch

MPNB14B-XADSS-N(LF)(SN)
Active

JST Sales America Inc. XAD series, B14B-XADSS-N(LF)(SN), Board to Cable/Wire, Header, Male Pin, 2.50mm pitch, 14 circuits, Through Hole, Solder, Tin-plated contacts, 3A, 250V, -25°C~85°C, UL94 V-0.

$0.7500Ref. price · indicative, final on quote
B14B-XADSS-N(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

B14B-XADSS-N(LF)(SN) Technical Specifications
ParameterValue
SeriesXAD
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current rating3A
Operating temperature-25°C~85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.398\" (10.11mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Mated stacking heights13.8mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeCircular
Rows2
Pitch0.098\" (2.50mm)
Positions14
Row spacing - mating0.098\" (2.50mm)
Contact finish - postTin
Contact length - post0.138\" (3.50mm)
Contact finish - matingTin

Product details

2.50 mm Pitch, 14-Position Shrouded Header – JST XAD Series

The B14B-XADSS-N(LF)(SN): Tin is a good choice for moderate-cycle applications (50–100 mates) in clean, indoor environments — the contact resistance stays stable through the life of the assembly.

Frequently asked questions

Where can I buy B14B-XADSS-N(LF)(SN) available via RFQ confirmation?

Submit a quote request for current pricing and delivery.

What is the mating connector for B14B-XADSS-N(LF)(SN)?

This header mates with a JST XAD series receptacle housing (female side) that accepts crimp terminals. Confirm the circuit count and pitch match your receptacle before ordering.
