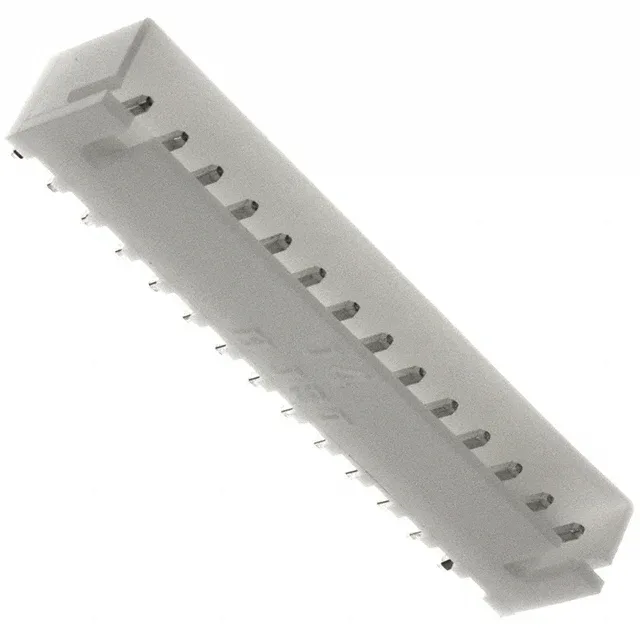

JST Sales America Inc. XH series, Board to Cable/Wire, Header, Male Pin, 14 Positions, 1 Row, 0.098" (2.50mm) Pitch, Through Hole, Press-Fit/Solder, Tin Contacts, 3A, 250V, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | XH |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Mated stacking heights | 9.8mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 14 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
Tin-on-tin contact finish is the standard for cost-sensitive, moderate-cycle applications — expect reliable performance within the 3 A per contact ceiling.
Termination is press-fit, solder — the press-fit tails provide mechanical retention through the plated through-hole before wave or selective solder wets the joint.
No stock-holding claim — quoted per BOM quantity.
Yes, RoHS compliant per the listing.
Sourced to order against your BOM quantity.
