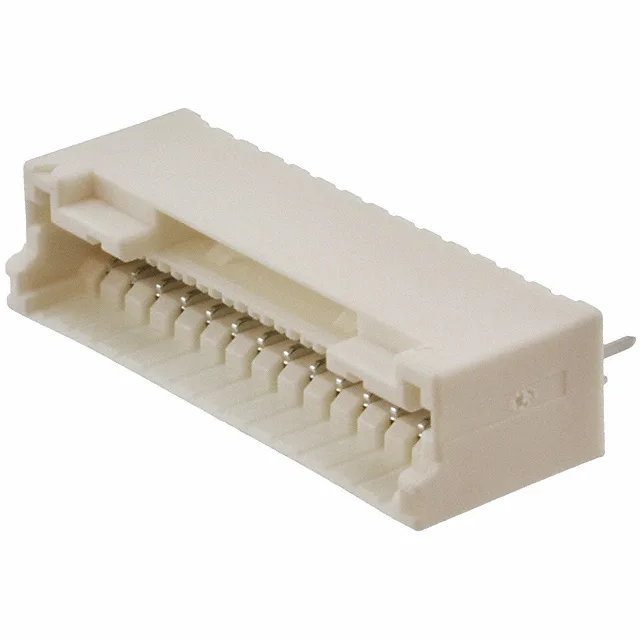

JST ZE series, Board to Cable/Wire, Header, 14 Positions, 1.50mm Pitch, Through Hole, Tin Plating, Locking Ramp, UL94 V-0
| Parameter | Value |
|---|---|
| Series | ZE |
| Gender | Outer Shroud Contact |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 100V |
| Current rating | 2A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.335\" (8.51mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 14 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
This header mates with JST ZE series crimp receptacle housings (e.g., ZESR or ZE series female connectors) using the corresponding crimp terminals. The through-hole kinked pins provide secure solder anchoring on the PCB – the kink resists pull-out during wave solder and handling. A board guide feature on the shroud assists alignment during assembly.
The mating pitch is 1.50 mm (0.059"). This is the center-to-center spacing between adjacent pins, which defines the PCB footprint and the matching receptacle pitch.
It mates with JST ZE series crimp receptacle housings. The female side uses ZE series crimp terminals inserted into a matching ZESR or similar housing – both are 1.50 mm pitch, single-row, 14-position.
