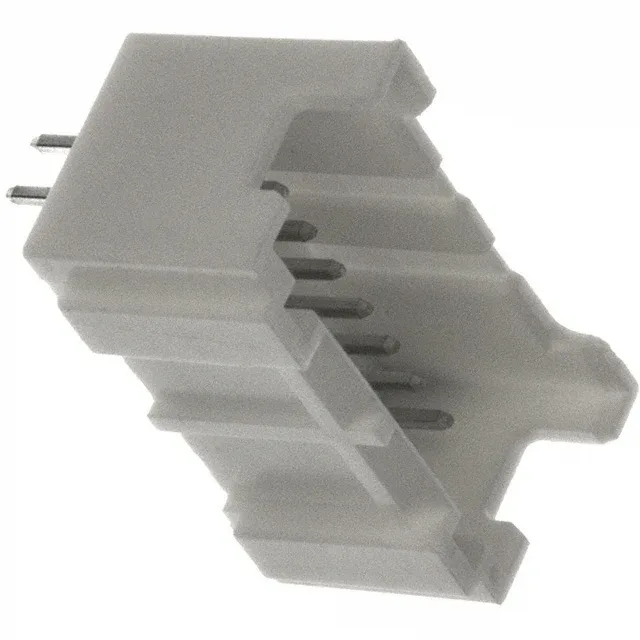

B16B-PADSS-1(LF)(SN) JST PAD Series 16-Pin Header 2mm Pitch

MPNB16B-PADSS-1(LF)(SN)
Active

JST PAD series, Board to Cable/Wire, Header, Male Pin, 16 Positions, 2.00mm Pitch, Through Hole, Solder, Locking Ramp, Tin Plating, UL94 V-0, Tray

$1.3100Ref. price · indicative, final on quote
B16B-PADSS-1(LF)(SN) datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

B16B-PADSS-1(LF)(SN) Technical Specifications
ParameterValue
SeriesPAD
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current rating3A
Operating temperature-25°C~85°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.402\" (10.20mm)
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
Mated stacking heights12.4mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions16
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Contact finish - matingTin

Product details

16-Position 2mm Pitch Header for Wire-to-Board

The B16B-PADSS-1(LF)(SN): This is a JST PAD series 16-position shrouded header, designed for wire-to-board connections. The locking ramp fastening type holds the mating half in place against vibration — a practical feature for harnesses routed inside enclosures or near moving parts.

Compared to the 14-position sibling B14B-PADSS(LF)(SN), this part adds two positions in the same row layout — a direct upsell for designs needing extra I/O without a board spin.

Frequently asked questions

What is the pin pitch of B16B-PADSS-1(LF)(SN)?

The mating pitch is 0.079" (2.00 mm) on both rows, with an identical row spacing of 0.079" (2.00 mm).
