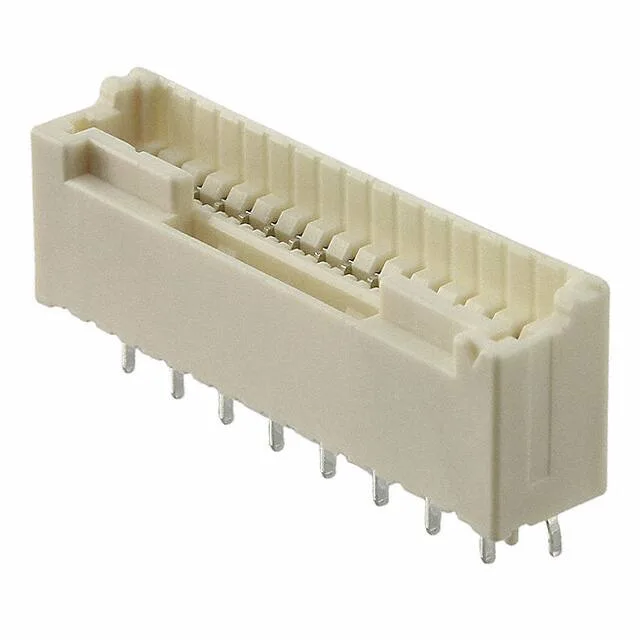

JST ZE series header, order code B16B-ZESK-1D(T)(LF)(SN)(N), 16 positions, single row, 1.50 mm pitch, 2 A, 100 V, through-hole, kinked pin solder termination, tin-plated mating contacts.
| Parameter | Value |
|---|---|
| Series | ZE |
| Gender | Outer Shroud Contact |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 100V |
| Current rating | 2A |
| Operating temperature | -25°C~85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.335\" (8.51mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 16 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
The B16B-ZESK-1D(T)(LF)(SN)(N) is the 16-position member of JST's ZE series board-to-wire header line, through-hole mounted with kinked pin solder tails. It carries tin-plated mating contacts rated 2 A at 100 V on a 1.50 mm pitch, with a full 4-wall shroud and locking ramp for secure mating.
The insulation material is rated UL94 V-0. RoHS and REACH compliance documentation is provided by JST.
