The B18B-PHDSS(LF)(SN) is the 18-circuit member of JST's PHD series board-to-cable/wire header line.
Shrouded housing with detent lock
A detent lock provides positive retention against vibration.

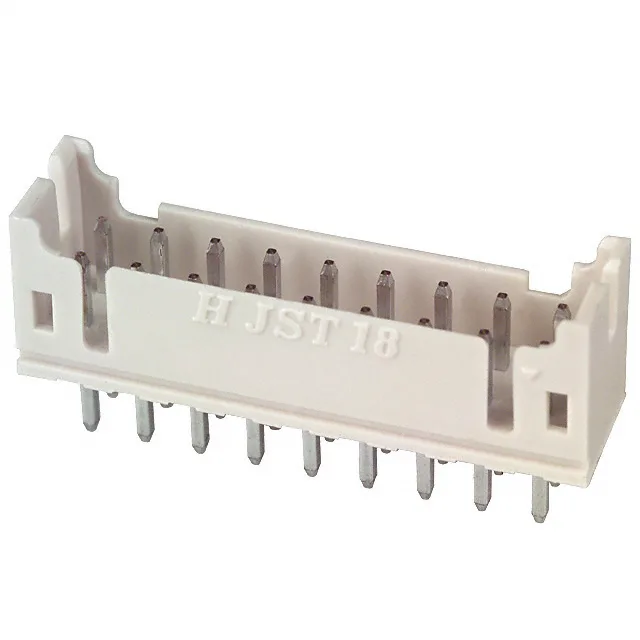

JST PHD series header, order code B18B-PHDSS(LF)(SN), 18 positions, dual row, 2.00 mm pitch, 3 A, 250 V, tin-plated mating contacts, through hole, solder termination, shrouded with detent lock.
$0.7100Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | PHD |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.256\" (6.50mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Mated stacking heights | 8.8mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 18 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.291\" (7.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.114\" (2.90mm) |
Product details
Frequently asked questions
What is the mating half for the B18B-PHDSS(LF)(SN) header?
The detent lock on the header engages the matching latch on the receptacle.
What compliance documentation is available for the B18B-PHDSS(LF)(SN)?
The header uses a UL94 V-0 rated polyamide (nylon, glass filled) insulator. RoHS and REACH compliance documentation is provided by JST Sales America Inc. for this part.
