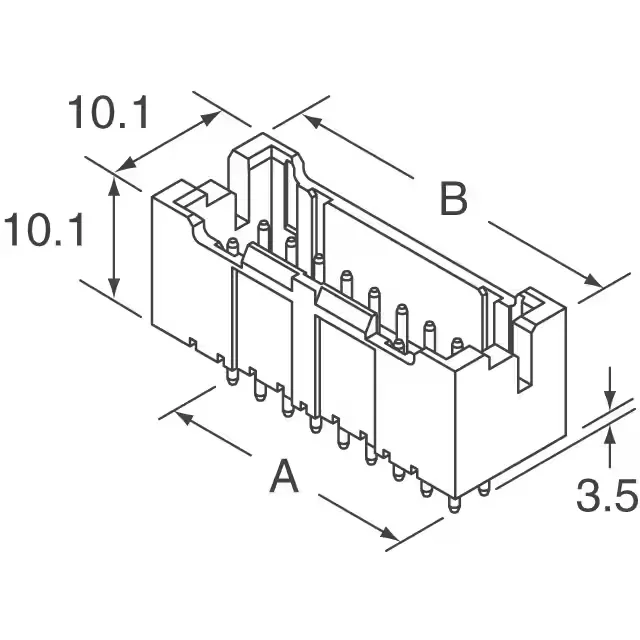

JST XAD series, Board to Cable/Wire, Header, 18 Positions, 2.50mm Pitch, Through Hole, Solder, Tin Plating, Locking Ramp, 3A, 250V, UL94 V-0
| Parameter | Value |
|---|---|
| Series | XAD |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C~85°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.398\" (10.11mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mated stacking heights | 13.8mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 18 |
| Row spacing - mating | 0.098\" (2.50mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
The B18B-XADSS-N(LF)(SN): This header mates with JST XAD series receptacle housings that accept crimp terminals — it is three parts, not one: the header, the housing, and the terminal. Confirm the housing part number and the terminal wire range (typically 20–24 AWG for the XAD series) before ordering.
Availability and current pricing confirmed at quote time through our multi-source distribution reach.
18 positions loaded, dual-row, with a 0.098-inch (2.50 mm) pitch on both the row spacing and the contact spacing.
Yes — the (LF)(SN) suffix indicates lead-free and tin-plated, and the part is listed as RoHS Compliant.
